A75MA-G55 series MSI mainboard manual

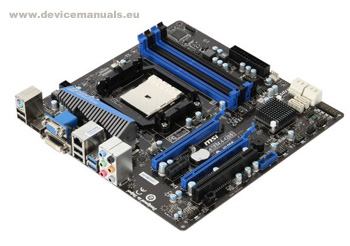

MSI A75MA-G55 series MS-7696 (v1.x) Mainboard FM1 socket

Download MSI A75MA-G55 series user manual in PDF format: A75MA-G55-EN



CPU

• AMD Llano APU in FM1 package
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• AMD® A75 Chipset

Main Memory • Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866 DRAM, 32GB Max
Slots• 2 PCI Express gen2 x16 slots
– PCI_E1 supports up to PCIE x16 speed
– PCI_E2 supports up to PCIE x4 speed
• 1 PCIE x1 slot
• 1 PCI x1 slot
On-Board SATA • 6 SATA 6Gb/s ports by AMD® A75
– Supports storage and data transfers at up to 6Gb/s
Audio• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
LAN• Realtek PCI-E GbLAN controller RTL8111E
– Supports 10Mb/s, 100Mb/s and 1000Mb/s
– Compliance with PCI-Express Bus specification v1.0a
USB 3.0• 2 USB 3.0 rear ports by AMD® A75
• 1 USB 3.0 onboard pinheader by AMD® A75
Internal I/O Connectors– 1 x ATX 24-pin power connector
– 1 x ATX 4-pin 12V CPU power connector
– CPU x 1 / System x 2 FAN connectors
– 1 x Front panel audio connector
– 1 x Front panel connector
– 2 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 6 x Serial ATA 6Gb/s connectors
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Clear CMOS jumper
– 1 x Chassis Intrusion connector

Back Panel I/O Ports

-1 x PS/2 keyboard or mouse
– 1 x Graphic Card port
– 1 x HDMI port
– 1 x DVI-D port
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN jack
– 1 x 6 in 1 audio jack

* HDMI and DVI-D can’t output simultaneously.

Dimension• 24.4cm(L) x 24.4cm(W) M-ATX Form FactorMounting

• 8 mounting holes
