Asus PRIME A520M-E

  • Asus

Ryzen AM4 micro ATX

motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A

Asus Prime A520M

Asus Prime A520M

Download  User  manual  Asus PRIME A520M-E
in PDF format: ASUS-A520M-E

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.

PRIME A520M-E is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.

Achieve speed with onboard M.2

M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

Specifications

  • CPU
    Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD A520
  • Memory
    2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    1 x D-Sub
    1 x DVI-D
    1 x HDMI 2.1(4K@60HZ)
  • Expansion Slots
    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD A520 Chipset
    2 x PCIe 3.0 x1
  • Storage
    Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    AMD A520 Chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8111H 1Gb Ethernet
    ASUS LANGuard
  • Audio
    Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – LED-illuminated design
    – Audio Shielding
    – Dedicated audio PCB layers
    – Premium Japanese audio capacitors
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Rear USB Port ( Total 7 )
    1 x USB 3.2 Gen 2 port(s)
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    – Performance and Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert
    – EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS 5X PROTECTION III
    – ASUS DIGI+ VRM
    – ASUS LANGuard
    – ASUS Overvoltage Protection
    – ASUS SafeSlot Core
    – ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    – ASUS Q-DIMM
    – ASUS Q-Slot
    ASUS Thermal Solution
    – Aluminum heatsink design
    ASUS Lighting Control

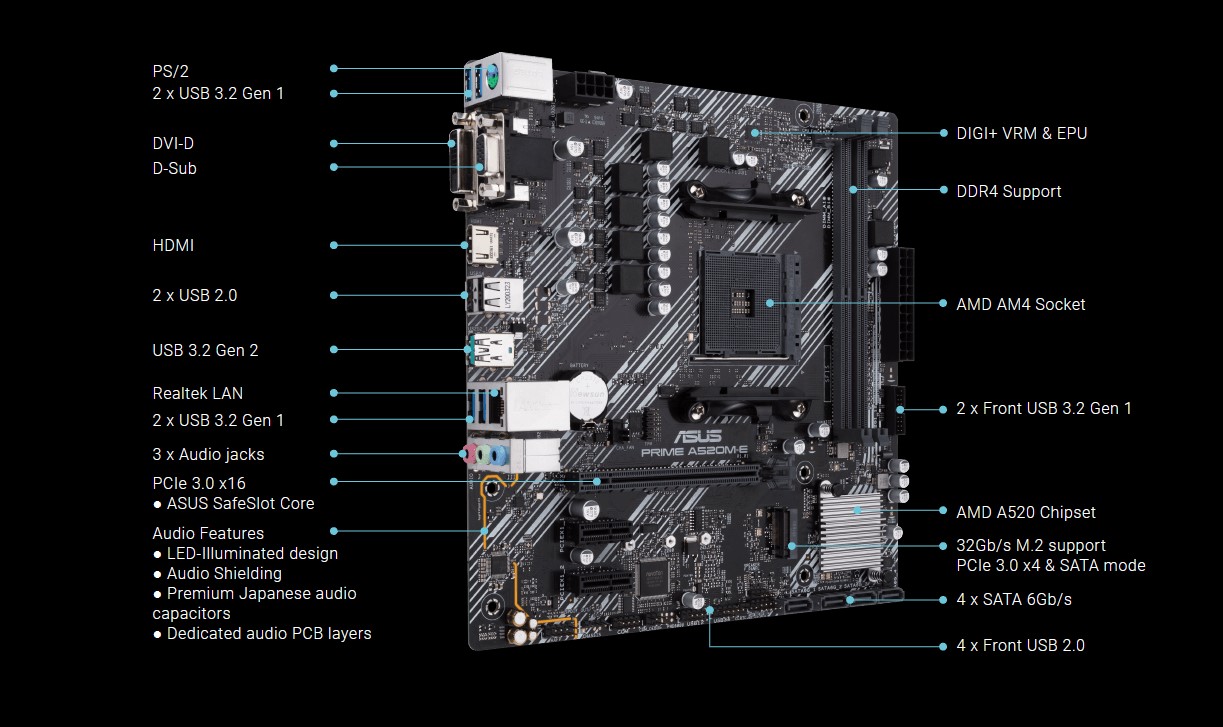

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    4 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector
  • Accessories
    User’s manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x M.2 SSD screw package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
