MSI MEG Z590 GODLIKE

MSI MEG-Z590

WELLENFÖRMIGES DESIGN

Im Vergleich zur herkömmlichen Kühlrippenanordnung vergrößert das exklusive wellenförmige Kühlrippendesign die Wärmeableitung um bis zu 50 %. Außerdem wird die Luftstromeffizienz verbessert und erhöht die thermische Leistung erheblich.

Das MEG Z590 GODLIKE verfügt über integriertes 10G-Super-LAN mit hoher Bandbreite und niedriger Latenz sowie Intel 2.5G-LAN. Dies bietet schnellere Datenübertragungsgeschwindigkeit als je zuvor. Der MSI LAN Manager klassifiziert und priorisiert automatisch die latenzempfindlichen für Anwendungen und bietet beste Online-Erlebnis mit geringer Latenz.

MSI MEG-Z590
MSI MEG-Z590

Gebrauchsanleitung MSI MEG Z590 GODLIKE: MEG-Z590-GODLIKE-Multi-lang



  • nterstüzt die 10. und 11. Generation der Intel® Core™ / Pentium® und Celeron® Prozessoren für den LGA 1200 Sockel
  • Unterstützt DDR4-Speicher, bis zu 5600(OC) MHz
  • Extrem leistungsstarkes Design: INTERSIL digitales PWM, direkte 20 Phasen mit 90A Smart Power Stage, Titanium Choke III und duale CPU-Stromanschlüsse zur Entfesselung der maximalen Leistung
  • Premium-Kühlleistung: Wellenförmiges Rippendesign, 8mm Heatpipe, 7W/mK Wärmeleitpads, Frozr-Kühlkörper und Aluminium-Backplate sorgen für extreme Leistung bei niedriger Temperatur
  • Dual Thunderbolt 4: Thunderbolt mit USB-C ermöglicht Geschwindigkeiten bis zu 40 Gb/s, 8K Display-Unterstützung, Daisy-Chaining und Multi-Port Accessory Unterstützung
  • 4-fach M.2: Maximaler Speicherplatz mit vier Lightning Gen 4 M.2 Anschlüssen. MSI Shield Frozr schützt effektiv deine SSDs
  • Dynamic Dashboard II: Das eingebaute bunte OLED-Bildschirm-Panel zeigt den Status des Mainboards an.
  • 10G Super-LAN, 2.5G LAN mit LAN Manager und Intel Wi-Fi 6E: Die verbesserte Netzwerktechnologie erlaubt eine sichere, stabile und rasend schnelle Netzwerkverbindung
  • Voll gepanzertes Design: Die revolutionäre magnetische Abdeckung ermöglicht es, das Kabelmanagement im PC-Gehäuse zu optimieren.
  • Spezial-Zubehör: Exklusives Zubehör steigert die Leistung und das Benutzererlebnis – M.2 XPANDER-Z GEN 4 S, Tuning Controller und DIY Stand-Set.



Processor

  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors
  • Processor socket LGA1200



Chipset

Intel® Z590 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max. overclocking frequency:
      • 1DPC 1R Max speed up to 5600 MHz
      • 1DPC 2R Max speed up to 4800+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.



Expansion Slots

  • 3x PCIe x16 slots
    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4
    • PCI_E1 & PCI_E2 slots (From CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E3 slot (From Z590 chipset)
      • Supports up to PCIe 3.0
  1. PCI_E3 will run at x1 speed when installing device in M2_4 slot.

Multi-GPU

  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

Thunderbolt 4

Intel® JHL8540 Thunderbolt™ 4 Controller

  • 2x Thunderbolt™ 4 (Type-C) ports on the back panel
    • Support up to 40 Gbps transfer rate with Thunderbolt devices
    • Support up to 20 Gbps transfer rate with USB4 devices
    • Support up to 10Gbps transfer rate with USB 3.2 devices
    • Support up to 5V/3A , 15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

Storage

  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 (from CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 , M2_3 & M2_4 slots (from Z590 chipset)
      • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
  3. M2_4 will run at x2 speed when installing device in PCI_E3 slot.
  4. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z590 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector)
  • 2x USB 2.0 ports are available through the internal USB 2.0 connector

Hub GL850G

  • 2x USB 2.0 ports are available through the internal USB 2.0 connector

Asmedia® 1074 Chipset

  • 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)

Audio

Realtek® ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Aquantia® AQC107 10Gbps LAN controller
  • 1x Intel® I225-V 2.5Gbps LAN controller

Wireless LAN & Bluetooth

Intel® WiFi-6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
  • Supports 802.11a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2 , FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin ATX PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 8x 4-pin system fan connectors
  • 1x 3-pin Water Flow connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis intrusion connector
  • 2x 2-pin Thermal sensors connectors
  • 1x TPM module connector
  • 1x Tuning controller connector

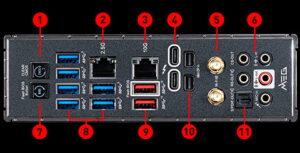

Back panel ports

  1. Clear CMOS Button
  2. 2.5G LAN
  3. 10G Super LAN
  4. Thunderbolt 4 40Gbps (Type-C)
  5. Wi-Fi / Bluetooth
  6. HD Audio Connectors
  7. Flash BIOS Button
  8. USB 3.2 Gen1 5Gbps (Type-A)
  9. USB 3.2 Gen2 10Gbps (Type-A)
  10. Mini DisplayPort Input (for Thunderbolt passthrough)
  11. Optical S/PDIF-Out
MEG Z590 GODLIKE
MEG Z590 GODLIKE

Dimensions

  • 12 in. x 10.9 in. (30.5 cm x 27.7 cm)
  • E-ATX Form Factor

Mounting

9 mounting holes

Operating System

  • Support for Windows® 10 64-bit

AMI Bios verison 7D03vA2 (2021-06-23)
