MSI mainboard X470 Gaming PRO CARBON AC

MSI-x470-gaming-PRO

Support des processeurs AMD® RYZEN™ et AMD® A-series / Athlon™ pour socket AM4

MSI-x470-gaming-PRO

MSI-x470-gaming-PRO

Télécharger mode d’emploi Mainboard X470 Gaming PRO CARBON AC

– gratuitement au format PDF: MSI-X470-Gaming-pro



  • Support des processeurs AMD® RYZEN™ et AMD® A-series / Athlon™ pour socket AM4
  • Support de la mémoire DDR4-3466+ (OC)
  • DDR4 Boost pour booster les performances de la mémoire DDR4
  • Mystic Light et Mystic Light Sync : 16,8 millions de teintes de couleurs et 17 effets de lumière
  • Turbo M.2 avec M.2 Shield, technologie AMD StoreMI, port AMD Turbo USB 3.1 GEN2
  • Audio Boost 4 et Nahimic pour une qualité audio incroyable, offrant un résultat réaliste
  • GAMING LAN et support Wi-Fi cadencés par Intel® pour une connexion réseau sans latence et une meilleure passante
  • Core Boost pour une alimentation adaptée au processeur multicœur
  • Support multi-GPU NVIDIA SLI™ 2-Way et AMD Crossfire™ 3-Way et slots Steel armor PCI-E
  • Compatibilité avec la technologie de réalité virtuelle
  • Fonctionnalités gaming exclusives : Game Boost, Gaming Hotkey, X-Boost
  • EZ Debug LED pour facilement repérer les problèmes
  • Click BIOS 5 : un BIOS amélioré qui aide à améliorer l’expérience gaming



Processor

Supports AMD® RYZEN™ Desktop processors and A-series/ Athlon™ Processors for Socket AM4



Chipset

AMD® X470 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  1. A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.



Slots

  • 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_3)
    • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
    • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
  • 1 x PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)1
  • 2 x PCIe 2.0 x1 slots
  1. PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

Multi-GPU

  • Ryzen™ Desktop Processors
    • Supports 3-Way AMD® CrossFire™ Technology
    • Supports 2-Way NVIDIA® SLI™ Technology
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
    • Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® X470 Chipset

  • 8 x SATA 6Gb/s ports
  • 2 x M.2 ports (Key M)
    • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (RyzenTM Desktop processors) or PCIe 3.0 x2 (A-series/ Athlon™ processors) 2242/ 2260 /2280/ 22110 storage devices
    • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices2
  1. SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
  2. PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

RAID

AMD® X470 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for NVMe storage devices

Onboard Graphics

  • 1 x DisplayPort, support a maximum resolution of 4096×2160 @60Hz1
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hzz2
  1. Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics & A-Series/ Athlon™ Processors
  2. Maximum shared memory of 2048 MB

USB

AMD® X470 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

WiFi & Bluetooth

Intel® Dual Band Wireless-AC 3168

  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
  • Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
  • 1 x M2_3 slot with E key (Wi-Fi mode)

LAN

  • 1 x Intel® I211AT Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 8 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump-fan connector
  • 4 x 4-pin system fan connectors
  • 1 x TPM module connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
  • 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1 x CORSAIR connector (JCORSAIR1)

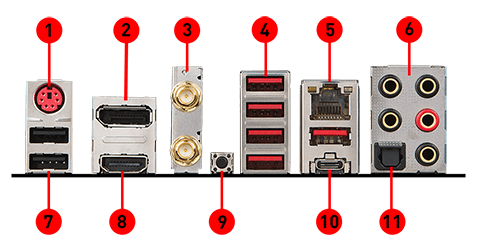

Back panel ports

  1. PS/2 Combo Port
  2. DisplayPort
  3. Wi-Fi / Bluetooth
  4. USB 3.1 Gen1
  5. LAN Port
  6. Golden Audio Connectors
  7. USB 2.0
  8. HDMI Port
  9. Clear CMOS button
  10. USB 3.1 Gen2
  11. Optical S/PDIF OUT

Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

9 mounting holes
