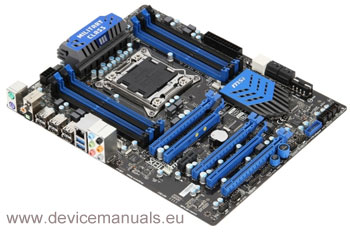

MSI X79A-GD65 (8D) Séries MS-7760 (v1.x) Mainboard Intel® X79 Chipset Based
Télécharger le mode d’emploi X79A-GD65 (8D) – PDF manuel:
• Military Class III: Top Quality & Stability
• PCI Express Gen 3
• Click BIOS II
• OC Genie II: Overclocker en 1 Seconde
• Supporte l’USB 3.0 & SATA 6Gb/s
| CPU (Max Support) | i7 |
|---|---|
| AM3 CPU Ready | N/A |
| FSB / Hyper Transport Bus | 100MHz |
| Chipset | Intel® X79 |
| Mémoire DDR2 | N/A |
| Mémoire DDR3 | DDR3 1066/1333/1600/1800*/2133*/2400*(OC) |
| Architecture Mémoire | Quad |
| Slots DIMM | 8 |
| Maximum Mémoire (GB) | 128 |
| PCI-Ex16 | 5 |
| PCI-E Gen | Gen3 (16, 16, 8), Gen2 (1, 1) |
| PCI-Ex4 | N/A |
| PCI-Ex1 | 1 |
| PCI | N/A |
| IDE | N/A |
| SATAIII | 4 |
| SATAII | 4 |
| RAID | 0/1/5/10 |
| LAN | 10/100/1000*1 |
| TPM | N/A |
| Port(s) USB 3.0 (arrière) | 2 |
| Port(s) USB 2.0 (arrière) | 8 |
| Ports Audio (arrière) | 6+Coaxial / Optical SPDIF |
| Port(s) Série (arrière) | N/A |
| Port(s) Parallèle (arrière) | N/A |
| Port(s) 1394 (arrière) | 1 |
| eSATA | N/A |
| Display Port | N/A |
| DrMOS II | N/A |
| VGA | N/A |
| HDMI | N/A |
| DVI | N/A |
| Mémoire VGA partagée Max (MB) | N/A |
| 4-way SLI | N/A |
| DirectX | N/A |
| Format de la carte | ATX |
| DrMOS | Y |
| APS | Y |
| Sideport Memory | N/A |
| Dual Graphics | N/A |
| SLI | Y |
| 3-way SLI | Y |
| Hybrid SLI | N/A |
| CrossFire | Y |
| Hybrid CrossFire | N/A |
| D-LED2 | N/A |
| Green Power Genie | N/A |
