Huawei Mate 20X 5G

Powered by the Balong 5000, HUAWEI’s first 7nm multi-mode 5G chipset with the Kirin 980, HUAWEI Mate 20 X (5G) is now ushering in the 5G mobile world and setting the industry’s benchmark with our ubiquitous technology. Grab your key to the 5G era.

Download user guide  Huawei Mate 20X 5G

in PDF format: HUAWEI_Mate_20_X_5G_EN



Ready, Set, Go!

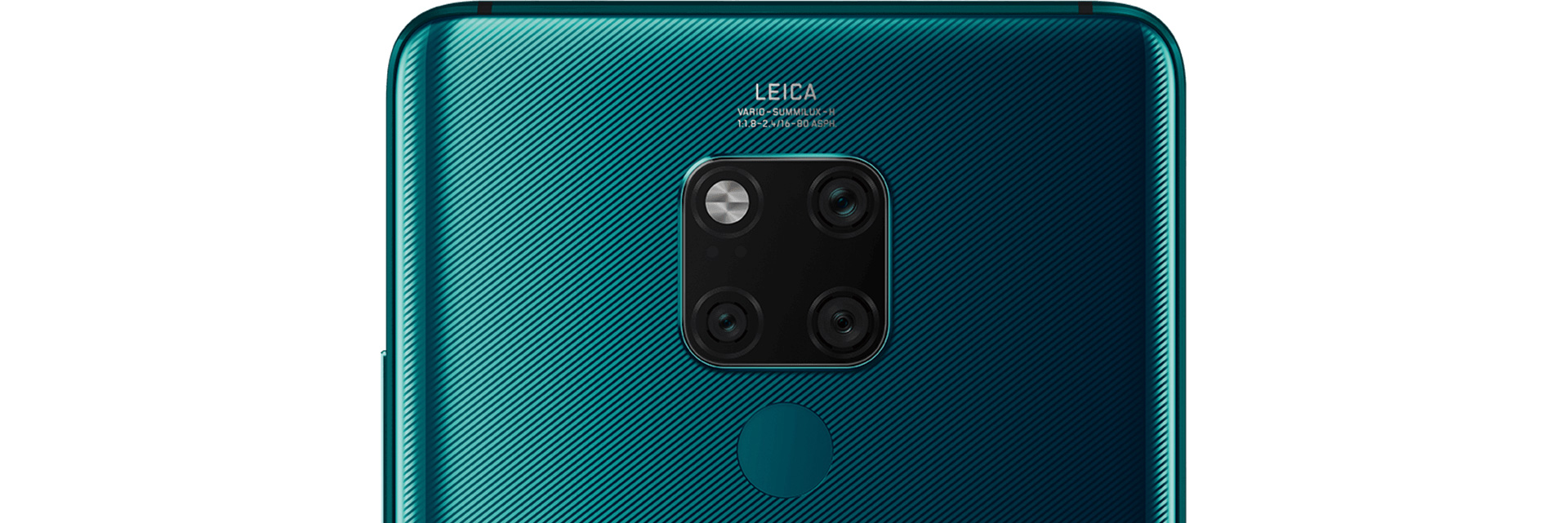

Be ready for every scenario with this powerful Leica Triple Camera. The 40 MP main RGB camera captures great details, while the 8 MP camera with telephoto lens will focus on your distant shots and the 20 MP camera with Leica Ultra Wide Angle Lens is perfect for the landscape photos, grouphies and macro shots.

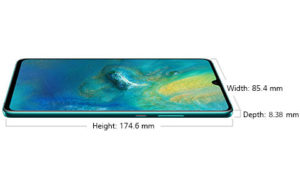

Size

Width:

85.4 mm

Height:

174.6 mm

Depth:

8.38 mm

Weight:

Approx. 233 g (including the battery)

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

Colour
  • Emerald Green
Display

Screen Size: 7.2 inches
Note: Screen measured diagonally as a full rectangle without accounting for the rounded corners.

Screen Colour: 16.7 million colours, Colour gamut (DCI-P3): 108% (typical value)

Screen Type: OLED

Anti-Fingerprint Film (Oleophobic Coating): Supported

Screen Lamination Technology: Fully laminated

Resolution: FHD+ 1080 x 2244 pixels

Screen Pixel Density: 345 PPI

Touch Screen: Multi-touch, supports a maximum of up to 10 contact points during touch

Glass Material: Aluminosilicate glass

Screen-to-Body Ratio: 87.83% Note: Screen-to-body ratio = Display area size / Device size

Operation System

EMUI 9.1 (Based on Android 9)

Memory

8 GB RAM + 256 GB ROM

DDR: LPDDR 4X
Storage Card Type: NM Card, support exFAT and FAT32 format
External Memory Support: 256 GB (not inbox, need to be purchased separately)

*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

Camera

Rear Camera:
Leica Triple camera:
40 MP (Wide Angle Lens, f/1.8 aperture) + 20 MP (Ultra Wide Angle Lens, f/2.2 aperture) + 8 MP (Telephoto, f/2.4 aperture), supports autofocus (laser focus, phase focus, contrast focus), supports AIS (Huawei AI Image Stabilization).
Note: The photo pixels may vary depending on the shooting mode.

Front Camera:
Single camera:
24 MP, f/2.0 aperture, supports fixed focal length.
Note:
*The photo pixels may vary depending on the shooting mode.
*The front camera sports a CMOS sensor, and the theoretical values of its physical pixels and effective pixels are 24.8 MP and 24 MP respectively.

Battery

Battery Type: Lithium polymer battery

Battery Capacity:
4200 mAh (Typical value)
4100 mAh (Rated value)

*Typical value. Actual capacity may vary slightly.

This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.

Connectivity

WLAN: Supported
WLAN Protocol: 802.11 a/b/g/n/ac
WLAN Frequency: 2.4 GHz and 5 GHz
Bluetooth: BT 5.0, BLE, SBC, AAC, LDAC and HWA Audio are supported.
Bluetooth File Transfer: Supported

NFC

Read Write mode/Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported.
*SIM card only support SIM 1 slot.

Sensors

Gravity Sensor: Supported
Ambient Light Sensor: Supported
Proximity Sensor: Supported
Gyroscope: Supported
Compass: Supported
Other Sensors: Fingerprint Sensor, Hall sensor, laser sensor, Barometer, Infrared sensor, Colour temprature sensor

Audio

Audio File Format: *.mp3, *.mp4, *.3gp, *.ogg, *.amr, *.aac, *.flac, *.wav, *.midi
Audio Codec: MP3, MIDI, AMR-NB, AAC, AAC+, eAAC+, AMR-WB, PCM, OGG, FLAC, LDAC, HWA, AC-3, eAC-3, AC-4

Video

Video File Format: *.3gp, *.mp4
Video Codec: Supports 4K, H.264, H.263, MPEG-4, MPEG-2, Xvid, VP8, VP9

Chipset

CPU Model: Huawei Kirin 980 + Balong 5000

CPU Kernel: Octa-core

CPU Frequency: 2 x Cortex-A76 Based 2.6 GHz + 2 x Cortex-A76 Based 1.92 GHz + 4 x Cortex-A55 1.8 GHz

GPU Model: Mali G76 720 MHz

GPS

Support GPS (L1 + L5 dual band) / AGPS / Glonass / BeiDou/Galileo (E1 + E5a dual band) / QZSS (L1 + L5 dual band)

NETWORK FREQUENCY

Primary SIM card:
5G NR: N77 / N78 / N79
4G LTE TDD: B34 / B38 / B39 / B40 / B41
4G LTE FDD: B1 / B2 / B3 / B4 / B5 / B6 / B7 / B8 / B9 / B12 / B17 / B18 / B19 / B20 / B26 / B28 / B32
3G WCDMA: B1 / B2 / B4 / B5 / B6 (Japan) / B8 / B19 (Japan);
2G GSM: B2 / B3 / B5 / B8 (850 / 900 / 1800 / 1900 MHz)
Secondary SIM card :
4G LTE TDD: B34 / B38 / B39 / B40 / B41
4G LTE FDD: B1 / B2 / B3 / B4 / B5 / B6 / B7 / B8 / B9 / B12 / B17 / B18 / B19 / B20 / B26 / B28
2G GSM: B2 / B3 / B5 / B8 (850 / 900 / 1800 / 1900 MHz)
Note:
Functions available on the live network depend on the carrier network.

Dustproof and Waterproof Grade

Dust and Water Resistant Supported (IP53)
Note: Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP53 as described by the international standard IEC 60529). Water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions.Submersion in liquid and the resulting damage is not covered by the warranty.

In the box

(1) Handset x 1
(2) Type-C digital Headset x 1
(3) Charger x 1
(4) Type-C Cable x 1
(5) Protective case x 1
(6) Quick Start Guide x 1
(7) Eject Tool x 1
(8) Warranty card
