Redmi Note 12 User Guide

Redmi Note 12

Redmi Note 12|Redmi Note 12 Pro+ 5G|Redmi Note 12 5G|Redmi Note 12 Pro 5G

120Hz AMOLED display | 33W fast charging

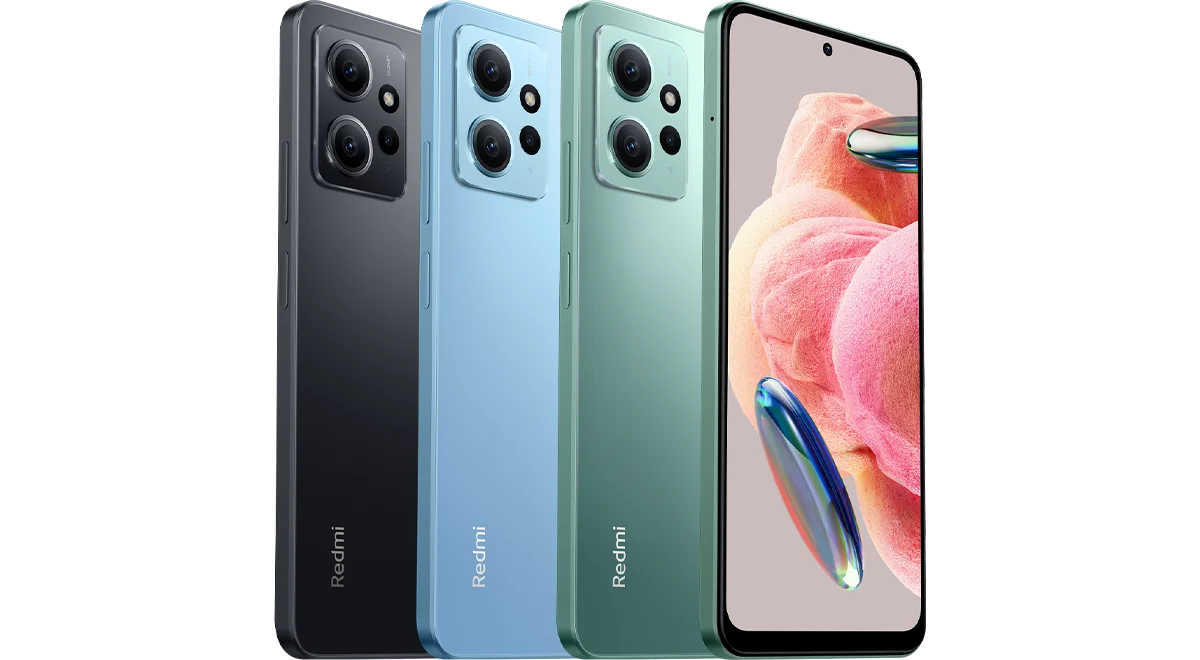

Redmi Note 12
Redmi Note 12

Download user manual PDF format: redmi-note-12



6.67” AMOLED display

All Redmi Note 12 models feature an impressive and eye-catching OLED display. Watch your favourite contents come to life with perfect blacks and vibrant colour re-production.

Support 3 refresh rates (60Hz/90Hz/120Hz) for a smoother visual experience and low energy consumption. Enjoy an unbeatably smooth experience with up to 120Hz high refresh rate, whether performing deep in a gaming session or browsing social media.

4096 levels of brightness adjustment allow screen dimming to be smooth and subtle. When ambient lighting suddenly changes, display brightness is adjusted gently with no glare.

Specs

Display

6.67″ AMOLED DotDisplay
Refresh rate: 120H
Brightness: 450 nits (typ), HBM 700 nits (typ), 1200 nits peak brightness
Contrast ratio: 4,500,000:1
DCI- P3 wide colour gamut
Resolution: 2400 x 1080
Sunlight displayReading mode

Design

165.66*75.96*7.85mm183.5gOnyx Gray, Mint Green, Ice Blue
Rear camera
50MP main camera
50Mf/1.88MP ultra-wide cameraf/2.2120°2MP macro cameraf/2.4Rear camera video recording1080p 1920×1080 | 30fps720p 1280×720 | 30fps
Front camera
13MP front cameraf/2.45Front camera video recording1080p 1920×1080 | 30fps720p 1280×720 | 30fps

Chipset

Snapdragon® 685CPU: Octa-core CPU, up to 2.8GHzGPU: Adreno 6106nm manufacturing process

Memory

4+128/6+128/8+128GBLPDDR4X + UFS2.2Expandable storage up to 1TB*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed on the device.
**Actual support and compatibility of memory cards may vary between manufacturers.

Battery

5000mAh (typ)

Charging
33W fast charging 33W in-box chargerUSB-C
Cooling system
Graphite
Security & Authentication
Side fingerprint sensorAI Face Unlock

Connectivity

Dual SIM + microSD
2G: GSM: 850 900 1800 1900MHz
3G: WCDMA:1/5/8
4G: LTE FDD:1/3/5/7/8/20/28/32
4G: LTE TDD:38/40/41Bluetooth 5.0Wi-Fi Protocol: 802.11a/b/g/n/ac

Vibration motor

Coin vibration motor
Water & Dust Resistance
IP53

NFC

Yes*Availability varies between markets

Navigation

GPS: L1 |GLONASS: G1 | Compass: B1 | Galileo E1

Audio

3.5mm headphone jack

Sensor

Proximity sensor | Ambient light sensor | Accelerometer | Electronic compass | IR blaster |Gyroscope

UI and system

MIUI 14 based on Android 13

Package contents

Redmi note 12 / Adapter / USB Type-C Cable / SIM Eject Tool / Protective Case / Quick Start Guide / Warranty Card
