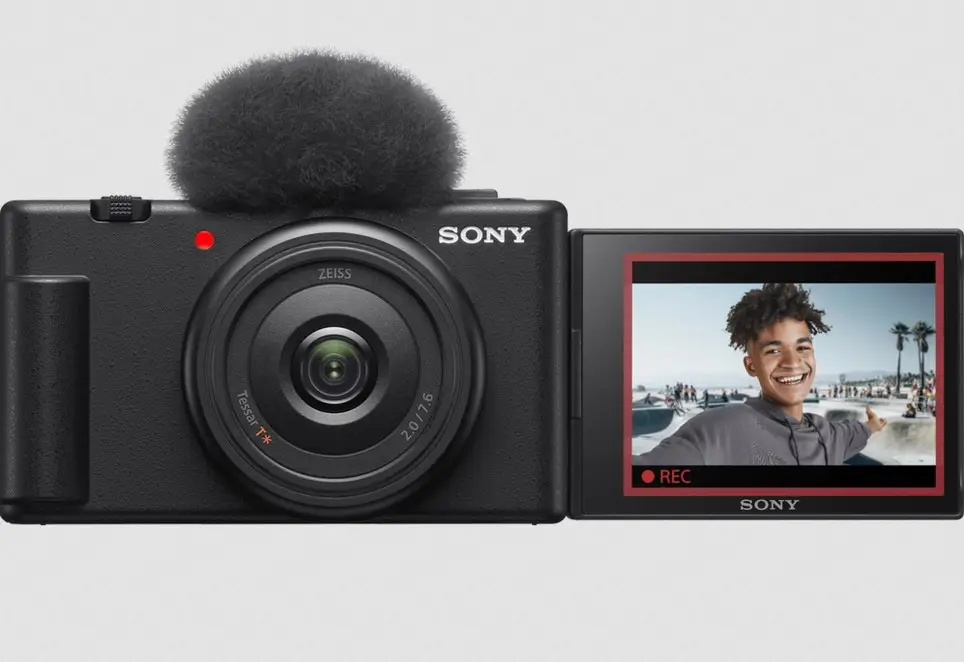

Easy-to-use and with dazzling image quality, the ZV-1F is the ideal next step for content creators and vloggers.
User manual in PDF format: ZV-1F
With the ZV-1F, you can truly capture it all – it allows you to snap a group selfie along with an expansive view of the background scenery. Since the camera’s ultra wide-angle 20 mm lens captures a wider field of view than the human visual field, you can take images with eye-popping depth and perspective, even in narrow spaces, both indoors and outdoors.
Using Eye AF, the camera automatically recognises human faces and eyes, making sure you stay in focus in front of the lens. Switching the focus to another subject is easy – just touch the screen. There’s no need to worry about lighting either, as Face Priority AE will automatically brighten your face.
Look your best any time you’re shooting. Without any special settings, the ZV-1F will accurately capture your skin tone, ensuring you a healthy and natural look. There’s also a Soft Skin Effect selectable to OFF/ Low/ Mid /High to adjust your skin smoothness.
Specifications
Sensor
- Sensor Type
- 1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor, aspect ratio 3:2
- Number of Pixels (Effective)
- Approx. 20.1 Megapixels
Lens
- Lens type
- ZEISS Tessar T* Lens, 6 elements in 6 groups
- F-number (Maximum Aperture)
- F2.0
- ND Filter
- –
- Focal length (f=)
- f=7.6 mm
- ANGLE OF VIEW (35MM FORMAT EQUIVALENT)
- 94°（20 mm)
- Focus Range (From the Front of the Lens)
- Approx. 5 cm (0.17 ft) to Infinity
- Optical Zoom
- –
- Clear Image Zoom (Still Image)
- 20M Approx. 2x / 10M Approx. 2.8x / 5.0M Approx. 4x
- Clear Image Zoom (Movie)
- 4K: 1.5x HD: Approx. 2x
- Digital Zoom (Still Image)
- 20M Approx.4x / 10M Approx.5.6x / 5.0M Approx.8x
- Digital Zoom (Movie)
- Approx.4x
- Filter Diameter
- φ40.5
Screen
- Screen Type
- 7.5 cm(3.0type)(4:3) / 921,600 dots / Xtra Fine / TFT LCD
- Adjustable Angle
- Opening Angle:approx. 176 deg., Rotation Angle:approx. 270 deg.
- MF Assist Magnification
- 1.6x, 4.0x
- Touch Panel
- Yes
Viewfinder
- Screen Type/Number of Dots
- –
Camera
- Image Processing Engine
- Yes (BIONZ X)
- STEADYSHOT (STILL IMAGE)
- Electronic
- Focus Type
- Contrast-detection AF
- Focus Mode
- Single-shot AF, Continuous AF, Manual Focus
- Focus Area
- Wide (425 points(contrast-detection AF)), Zone, Center, Flexible Spot (S/M/L), Expanded Flexible Spot
- OBJECT TRACKING
- Yes (Tracking)
- EYE AF
- [Still images] Human (Right/Left Eye Select) / Animal; [Movie] Human
- Light Metering Mode
- Multi Pattern, Center Weighted, Spot, Entire Screen Avg, Highlight
- Exposure Compensation
- +/- 3.0EV, 1/3EV step
- ISO Sensitivity (Still Image)(Recommended Exposure Index)
- Auto (ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100)
- ISO Sensitivity (Movie)
- Auto:(ISO125Level-ISO6400Level),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
- White Balance Modes
- Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Underwater Auto, C.Temp./Filter, Custom
- WB Micro Adjustment
- Yes (G7 to M7,57-step) (A7 to B7,29-step)
- Electronic Shutter
- Program Auto(1/4″ – 1/32000) / Manual(1/4″ – 1/32000) / Aperture Priority(1/4″ – 1/32000) / Shutter Priority(1/4″ – 1/32000)
- Aperture
- Program Auto(F2/F8) / Manual(F2/F8) / Shutter Priority(F2/F8) / Aperture Priority(F2/F8)
- Image Control
- Contrast, Saturation, Sharpness, Creative look, Color Space, Quality (JPEG (Extra fine, Fine, Standard))
- Noise Reduction
- high ISO NR:Normal/Low/Off
- Dynamic Range Functions
- Off, Dynamic Range Optimizer (Auto/Level 1-5)
- Shooting Mode
- Auto (Intelligent Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Auto (Intelligent Auto)), S&Q Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, S&Q Auto(Intelligent Auto))
- Continuous Shooting Speed (maximum) (with max. recording pixels)
- Speed Priority Continuous Shooting: approx. 16 fps, Continuous Shooting: approx. 3.5 fps
Self-Timer10 sec. / 5 sec. / 2 sec. / self timer(movie)Drive ModesSingle, Continuous shooting, Self-timerINTERVAL RECYes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking(High/Mid/Low))
- Panorama (Shooting)
- –
- Picture Profile
- off/PP1-PP10(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
Flash
- Flash Type
- –
- Bracketing
- –
- External Flash Mode
- –
Recording
- Compatible Recording Media
- [XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro
, Memory Stick Micro(Mark2), SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)
- Recording Format
- [Still Image] : JPEG(DCF Ver.2.0,Exif Ver.2.32,MPF Baseline compliant), [Movie]: XAVC S
- Recording Format (Movie Audio)
- XAVC S:LPCM 2ch
- Colour Space (Still)
- sRGB, Adobe RGB
- DCF/DPOF
- DCF/EXIF/MPF
- Still Image Number of recorded pixels (Image Size)
- 3:2mode:20M(5,472×3,648) / 10M(3,888×2,592) / 5M(2,736×1,824),4:3mode:18M(4,864×3,648) / 10M(3,648×2,736) / 5M(2,592×1,944) /16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528),1:1mode:13M(3,648×3,648) / 6.5M(2,544×2,544) / 3.7M(1,920×1,920)
- Movie Recording Mode (NTSC)
- NTSC/PAL Selector: [NTSC] XAVC S 4K: 30p 100M(3,840×2,160/30p) / 30p 60M(3,840×2,160/30p) / 24p 100M(3,840×2,160/24p) / 24p 60M(3,840×2,160/24p), XAVC S HD:60p 50M(1,920×1,080/60p) / 60p 25M(1,920×1,080/60p) / 30p 50M(1,920×1,080/30p) / 30p 16M(1,920×1,080/30p) / 24p 50M(1,920×1,080/24p) / 120p 100M(1,920×1,080/120p) / 120p 60M(1,920×1,080/120p)
- Movie Recording Mode (PAL)
- NTSC/PAL Selector: [PAL] mode XAVC S 4K: 25p 100M(3,840×2,160/25p) / 25p 60M(3,840×2,160/25p), XAVC S HD:50p 50M(1,920×1,080/50p) / 50p 25M(1,920×1,080/50p) / 25p 50M(1,920×1,080/25p) / 25p 16M(1,920×1,080/25p) / 100p 100M(1,920×1,080/100p) / 100p 60M(1,920×1,080/100p),
- Still Image Number of recorded pixels (Image Size) during Movie
- XAVC S 4K : 8.3M (3840×2160) XAVC S HD : 2.1M (1920×1080)
- Proxy Recording
- Yes (1280 x 720(Approx.9Mbps))
Interface
- Input and Output Terminals
- USB Terminal Type-C (USB2.0), Micro HDMI, Microphone jack (3.5 mm Stereo mini jack)
- NFC
- –
- WI-FI
- Yes(IEEE802.11b/g/n(2.4GHz band))
- Interfaces
- –
- Bluetooth
- Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band))
Power
- Power Source
- DC3.6V(supplied battery)
- Battery System
- Rechargeable battery pack NP-BX1
- Power Consumption (Camera Mode)
- Approx. 1.5W with LCD monitor (CIPA standard)
- USB Charge/USB Power Supply
- Yes (Shooting, Playback)
- BATTERY LIFE(STILL IMAGES)(CIPA)
- Monitor:Approx. 360 / Approx. 180 min., Monitor (When Auto Monitor off is set to 2 sec):Approx. 540 / Approx. 270 min.,
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA) Monitor:Approx. 60 min.BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA) Monitor:Approx. 90 min.
Others
- Playmemories Camera Apps
- –
- Shooting Functions
- Shot Mark, Soft Skin Effect, Product Showcase Set, Background Defocus, Step Zoom, Face Detection, Face Registration, Grid Line, Digital Level Gauge (pitch and roll), Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, PC Remote Control, Gamma Disp. Assist, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, My Menu
- Playback Functions
- BRAVIA Sync(Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete Protect, Photo Capture, Rating, Automatic Image Rotation,
- TRILUMINOS Color
- Yes
- 4K image output
- Yes
- Operating Temperature
- 0 degrees C. – +40 degrees C. / 32 degrees F. – 104 degrees F.
- Exif Print, PRINT Image Matching (PIM3)
Size & Weight
- DIMENSIONS (W X H X D) (APPROX.)
- 105.5 x 60.0 x 46.4 mm (4 1/4 in. × 2 3/8 in. × 1 7/8 in.)
- WEIGHT (CIPA COMPLIANT)
- Approx. 256 g (9.1 oz.)(Battery and Memory Card are included) / Approx. 229 g (8.1 oz.)(Body Only)
Colour Options
black
What’s In The Box
- Lens cap, Rechargeable Battery Pack (NP-BX1), Type-C USB cable(USB2.0), Wind Screen, Wind Screen Adaptor, Instruction Manual
