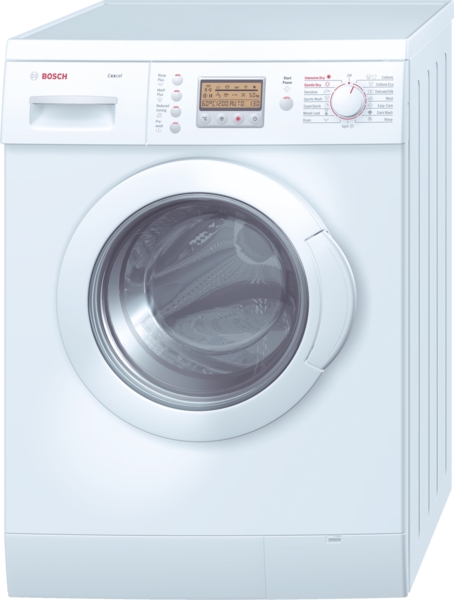

Bosch Exxcel Automatic washer dryer WVD24520GB
White. 5kg/2.5kg capacity. Energy label C. 1200 rpm. Time delay. Time Remaining. Autodry. Load recommendation. Detergent overdosage. Reload. Child lock. Wash Plus. Prewash. Rinse Plus. Reduced Ironing. LCD Display. Dark. Sensitive. Sport. Super quick 15. Mixed load
Download user manual in PDF format: WVD24520GB
|Product name / Commercial code||WVD24520GB|
|Internal article number||WVD24520GB|
|Built-in / Free-standing||Free-standing|
|Connection Rating (W)||2200 W|
|Current (A)||13 A|
|Voltage (V)||230 V|
|Frequency (Hz)||50 Hz|
|Length electrical supply cord (m)||175.0 cm|
|Plug type||GB plug|
|Height of the product (mm)||860 mm|
|Dimensions of the product (mm)||860 x 600 x 560 mm|
|Dimensions of the packed product (HxWxD) (mm)||870 x 670 x 665|
|Net weight (kg)||73.00 kg|
|Gross weight (kg)||77.00 kg|
|Energy efficiency class||C|
|Energy consumption (wash and dry of full wash load) (kWh)||4.56 kWh|
|Energy consumption (wash only) (kWh)||0.90 kWh|
|Washing performance class||A|
|Maximum spin speed (rpm)||1,200 rpm|
|Capacity cotton (Kg) washing||5.0 kg|
|Capacity cotton (Kg) drying||2.5 kg|
|Water consumption (wash and dry full wash load) (l)||106 l|
|Noise level washing (dB(A) re 1 pW)||62 dB (A)|
|Noise level spinning (dB(A) re 1 pW)||75 dB (A)|
|Noise level drying (93,5%) dB||60 dB (A)|
|Total annual water consumption (Washing and drying 200 full loads) (l)||21,200 l|
|Total annual energy consumption (Washing and drying 200 full loads) (kWh)||912 kWh|
|Total annual water consumption (Washing only 200 full loads) (l)||9,000 l|
|Total annual energy consumption (Washing only 200 full loads) (kWh)||180 kWh|
|Average washing time cotton 60C EN 60456 (full load) (min)||352 min|
|Spin speed options||Variable|
|Water protection system||Total system|
|Separate temperature control options||One temperatur|
|Cold wash option||No|
|Drying progress indicator||LCD-display|
|Digital countdown indicator||Yes|
|Start delay options||Continuous|
|Start delay time max (h)||24 h|
|Tub material||Stainless steel|
|Drum volume (l)||42 l|
|Drum material||Stainless steel|
|Hot & cold water intake||No|
|Moisture monitoring system||time controlled|
|Adjustable drying temperature||Yes|
|Blocked filter indicator||No|
i need help
a key sign has popped up on my display and now it wont work
Hold down the start button it will remove key sign, it is the child lock.
i did that and they sign has stopped flashing but remains on. if we hold the start button the key sign alternates between flashing and remaining on plus beeping each time.
It’s the child lock. I only managed to remove the lock by turning the dial to whichever programme had been running at the time it was accidentally set and then holding down the clock key for 5 seconds. I realised that I usually finish by using the dryer so set dial to ‘gentle dry’ and then held the clock key and hey presto! Finally! I know these posts are old, but I’ve just found them helpful so I’m hoping this might help someone else & save a call out fee!
Thanks R E. You did indeed saved me a call. Cheers.
I think the bearing on the drive/wheel is making a slight rumble sound. Is it possible for a DIY repair that I will be able to do or do I need to employ a service engineer to replace the bearing?
Hi, did you find a solution to this? I’ve got the same problem. I know you can normally change the bearings, but the drum looks sealed on this model! Thanks
Hi, depending on how skilled you are. The bearing can be removed using a puller, it must be replaced.
Thanks. It’s a sealed metal tub. Panels are one complete unit wrapped around washer. There’s a back access panel (to belt and spider) and you can also remove the top. Any advice would be great!
Hi, did you find a solution?I have the same issue. It’s a sealed drum, but was told.you can change bearings through the back ageless panel…
Hi, Did you find a solution to this? I have the same problem. It’s a sealed drum, but was told you can change the bearings through the back access panel… Thanks
Hi Oliver, I have not experience with change the bearing, but it not will be easy, luck on Youtube:
Flashing key sign appeared with 0.01 on the clock. Tried holding down start button to no avail. Help!!
Please help,key flashing and now FO4 flashing?????
Hi, F04 Error menan: No pump piloting
Probably you must cleaning waste from pump.
Hi i need help.F04 is flashing in the screen.how to remove it?i tried also to drain the water inside but the F04 comes out..please help me
Hi, error code F04 on a Bosch Washing Machine means that the machine hasn’t been able to pump out. The most common defect is clogged filter, check it out.
Where to chech the blockage?
I was drying the clothes for 10min after the washing cycle and now the door seems stuck.
I trued the 5sec push on the start button and tried turning it off but to no avail.
Please help me, im leaving today and my most essential clothes are stuck!
Disconnect the appliance for 5 minutes on electricity, then opens the door lock.
Flashing key sign appeared with 0.01 on the clock. Tried holding down start button to no avail. I need help!
I need help too. Key sign flashing with twin beeps if i press and hold start button but does not go out. Some one please advice. Program was set to easy care
I do not know if this helps: Turn off the machine, turn the wheel to start the program. Turn and hold the button for about 5 seconds.
you need to use the clock button instead of the start button
Thanks that worked !! Wish I had know before I wasted 4 hours trouble shooting.
SUCCESS!!! Was getting the 1 min left on the timer and the flashing door lock when tried to start any programme. Tried all sorts of button pressing. Unplugged it etc.
Finally turned it off until door released (as normal) and then held button down for a few seconds with door OPEN and it all went back to normal.
Phew. Not sure now whether it was the power or timer button.
I have same problem. the washing machine stops drying with 1 minute remaining, and the lock key is flashing.
Could you explain me what keys you use to solve this problem.
Bosch exxcel washer/dryer the dryer stopped working after being switched off for a while when I went shopping switched it back on to no avail it won’t drain the water also the dial moves across and the end of programme signal comes on
hi. i’d like to know how I should use the dryer setting once the wash cycle is over? Plus i used a detergent tablet and it was stuck to one piece of clothing the whole time and did not wash the clothes. Should i put this in the drawer or the drum?
hi ,, the key is flashin on my washer plus the the spin symbol an looks like it hasnt finished load but must of lent over washer to which then i thought it was finished , took load out an put other load in an key flasing
How do I get the washing powder/softner draw out, as there is a terrible smell coming from it and I think it needs a good clean?
when on 30 mins drying cycle process stopped after 23 mins with no error codes.
when I tried a 1 hour drying cycle process stopped after 1 min with no error codes.
I have the same problem :/ mine stops after about 14 min on 2hr drying program, no error codes.
It is strange that it is without error messages, is the filter cleaned?
The conditioner is not washing out of the box during the rinse cycle
Box can be a dirty of old conditioner. Take out the whole box and clean it.
I’ve put a chenille jumper in the dryer by accident and the whole thing has disintegrated around the drum.. Now I’m concerned it’s blocked all the filter/ drainage pipes up, I can’t find any reference to a lint filter anywhere.. Is there one and where would I find it? It’s a Bosch exxcel maxx washer dryer.
I have a key sign plus a error code f16 on my washer/dryer how do I reset this as I don’t have the manual. I have tired holding the start button down but no luck.
Hi, fault F 16 is a problem with closing doors. Door not detected closed, check door catch and latch
Hi. Cycle wont start when i press the start/pause key, which is flashing. I turned off the machine and cleaned the front of the machine in case something was stuck in it. The screen went completely blank but came back on after ca. 10 mins but the start button still doesn’t work when I press it.
My machine was set to a 60 minute drying cycle. Shortly after it started the drum began spinning really quickly as if it was on a washing cycle. Now it won’t dry at all but has no error code. Any ideas..?
Hi my Bosch Exxcel washer dryer door wont open, the washing machine stops drying with 1 minute remaining, and the start/pause button is red. Ive tried turning it off and on. I also tried doing a spin cycle but does the same.
The dispenser hose was taken off. I fixed it 3 times and it still does the same. How can I fix it definitely? Must I use silicone?
My program screen is blank not going on to any thing.
What’s wrong ??
We have one of these washer dryers in our boat and has not been used for nearly 12 months we ran it over the weekend and after about 30 minutes it tripped the circuit breaker this keeps happening then I left the machine for a couple of hours and re started something after 1/2 the cycle any advice please
