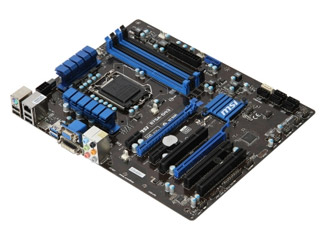

MSI B75A-G43 series MS-7758 (v2.x) Mainboard
Download user manual – User guide PDF format: B75A-G43-EN
Intel® B75 Chipset Based
• Military Class III components: Top quality & stability
• OC Genie II: Auto OC to boost performance in 1 sec
• ClickBIOS II: Easy-to-use UEFI BIOS interface
• Support USB 3.0 & SATA 6Gb/s
| CPU (Max Support) | i7 |
|---|---|
| AM3 CPU Ready | N/A |
| FSB / Hyper Transport Bus | 100MHz |
| Chipset | Intel® B75 |
| DDR2 Memory | N/A |
| DDR3 Memory | 1066/1333/1600*/1800*/2000*/2200* (OC, 22nm CPU required) |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 32 |
| PCI-Ex16 | 2 |
| PCI-E Gen | Gen3 (16) Gen2(4) |
| PCI-Ex4 | N/A |
| PCI-Ex1 | 2 |
| PCI | 3 |
| IDE | N/A |
| SATAIII | 1 |
| SATAII | 5 |
| RAID | N/A |
| LAN | 10/100/1000*1 |
| TPM | Y |
| USB 3.0 ports (Rear) | 2 |
| USB 2.0 ports (Rear) | 4 |
| Audio ports (Rear) | 6 |
| Serial ports (Rear) | N/A |
| Parallel ports (Rear) | N/A |
| 1394 ports (Rear) | N/A |
| eSATA | N/A |
| Display Port | N/A |
| DrMOS II | N/A |
| VGA | 1 |
| HDMI | 1 |
| DVI | 1 |
| VGA Max Share Memory (MB) | 1760 |
| 4-way SLI | N/A |
| DirectX | 11 |
| Form Factor | ATX |
| DrMOS | N/A |
| APS | N/A |
| Sideport Memory | N/A |
| Dual Graphics | N/A |
| SLI | N/A |
| 3-way SLI | N/A |
| Hybrid SLI | N/A |
| CrossFire | Y |
| Hybrid CrossFire | N/A |
| D-LED2 | N/A |
| Green Power Genie | N/A |
