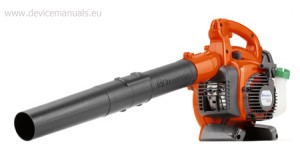

Operator’s manual Husqvarna 125B, 125BV blower
Download Husqvarna 125B, 125BV user manual in PDF format: 125b-125bv-EN
Efficient hand held blower that combines high blowing power with user friendliness. Perfect for home owners. Well balanced and easy to manouevre thanks to in-lined air out let.
Engine specification| Cylinder displacement | 28 cm³ / 1.7 cu.inch |
|---|
| Power output | 0.8 kW |
|---|
| Maximum power speed | 8000 rpm |
|---|
| Maximum recommended engine speed | 10000 rpm |
|---|
| Carburettor | Zama C1Q |
|---|
| Fuel tank volume | 0.5 lit / 16.91 fl oz |
|---|
| Fuel consumption | 575 g/kWh |
|---|
| Spark plug | Champion RCJ6Y |
|---|
Article data| Air flow in housing | 13.31 m³/min / 470 cfm |
|---|
| Air flow in pipe | 12.03 m³/min / 425 cfm |
|---|
| Air speed | 76 m/s / 170 mph |
|---|
| Air speed (round nozzle) | 58.12 m/s / 130 mph |
|---|
| Air speed (flat nozzle) | 76 m/s / 170 mph |
|---|
Vibration & noise data| Equivalent vibration level (ahv, eq) handle | 11.1 m/s² |
|---|
| Sound pressure level at operators ear | 92 dB(A) |
|---|
| Sound power level, guaranteed (LWA) | 107 dB(A) |
|---|
Equipment| OEM Harness | — |
|---|
| OEM Nozzle type | Round+ Flat |
|---|
Overall dimensions| Weight | 4.26 kg / 9.4 lbs |
|---|
I put a new spark plug in a model 125bv blower. It runs a bit rough. Is a special tool required to adjust the carburetor? Is there a procedure for adjustment?
Is this model 2 or stroke engine it doesn’t say
