F2A85-M PRO Asus Motherboard manual

  • by

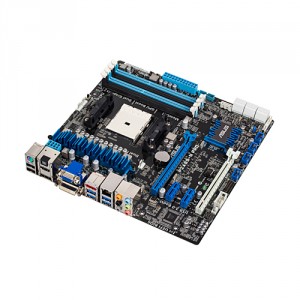

AMD Socket FM2 F2A85-M PRO Asus Motherboard

Download F2A85-M PRO ASUS user manual in PDF format: F2A85-M_PRO-EN

Specifications

CPU AMD Socket FM2 Athlon™/A- Series Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 3.0 Technology
Chipset AMD A85X FCH(Hudson D4)
Memory 4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic Integrated AMD Radeon™ HD 7000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports *
– Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
– Supports DVI with max. resolution 2560 x 1600 @ Hz
– Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
– Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Maximum shared memory of 2048 MB
AMD® Dual Graphics technology support
Supports DirectX 11
Multi-GPU Support Supports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots 2 x PCIe 2.0 x16 (x16 or dual x8)
2 x PCIe 2.0 x1
Storage AMD A85X FCH(Hudson D4) chipset :
7 x SATA 6Gb/s port(s), gray
1 x eSATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10, JBOD
LAN Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC892 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– Optical S/PDIF out port(s) at back panel
USB Ports ASMedia® USB 3.0 controller : *2
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD A85X FCH(Hudson D4) chipset :
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset :
10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board)
Overclocking Features Overclocking Protection :
– ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS Dual Intelligent Processors – TPU & EPU :
ASUS TPU :
– Auto Tuning
– TurboV
– GPU Boost
– TPU switch
ASUS EPU :
– EPU
– EPU switch
ASUS Digital Power Design :
– Industry leading Digital 4 +2 Phase Power Design
ASUS Exclusive Features :
– Remote GO!
– USB BIOS Flashback
– MemOK!
– AI Suite II
– Ai Charger+
– USB Charger+
– Anti-Surge
– Low EMI Solution
– ESD Guards
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert 2
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Slot
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 x -pin)
3 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x USB BIOS Flashback button(s)
Accessories User’s manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
BIOS 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a
Support Disc Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)
Form Factor uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note * Refer to http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
*1 LucidLogix Virtu MVP supports Windows 7 operating systems.
*2 Supports ASUS USB 3.0 Boost UASP Mode
