Built-in compact oven Siemens CS656GBS7B

iQ700 Built-in compact oven with steam function 60 x 45 cm Stainless steel

Siemens CS656GBS7B
Siemens CS656GBS7B

Download User manual Siemens CS656GBS7B in PDF format: Siemens-oven-CS656GBS7B

  • Far less oven cleaning – ecoClean Plus.
  • The full steam function: making it simple to cook healthy and delicious meals
  • Home Connect – Experience the intelligent kitchen via app.
  • User-friendly menu navigation with good display features – TFT-Touchdisplay.
  • cookControl Plus – Build success into your baking.




Stainless steel

No. heating modes


Heating Types

4D hot air, Bottom heat, Conventional heat, Deep-frozen food special, Defrost, fermentation, Full width grill, Half width grill, Hot Air-Eco, Hot air grilling, low temperature cooking, Pizza setting, pre-heating, Regeneration, Steam 100%, warming

Range of temperature (°C)

30-250 °C

addedSteam – for baking and roasting


Water intake


Water tank volume

1.0 l

Integrated Cleaning system

Catalytic all sides, Hydrolytic

Ease of access


Usable volume (of cavity) – NEW (2010/30/EC)

47 l

Safety device

childproof lock, Residual heat indicator, Safety switch-off func oven, start button

Included accessories

1 x grid, 1 x universal pan, 1 x steam container, punched, size S, 1 x steam container, punched, size XL, 1 x steam container, unpunched, size S

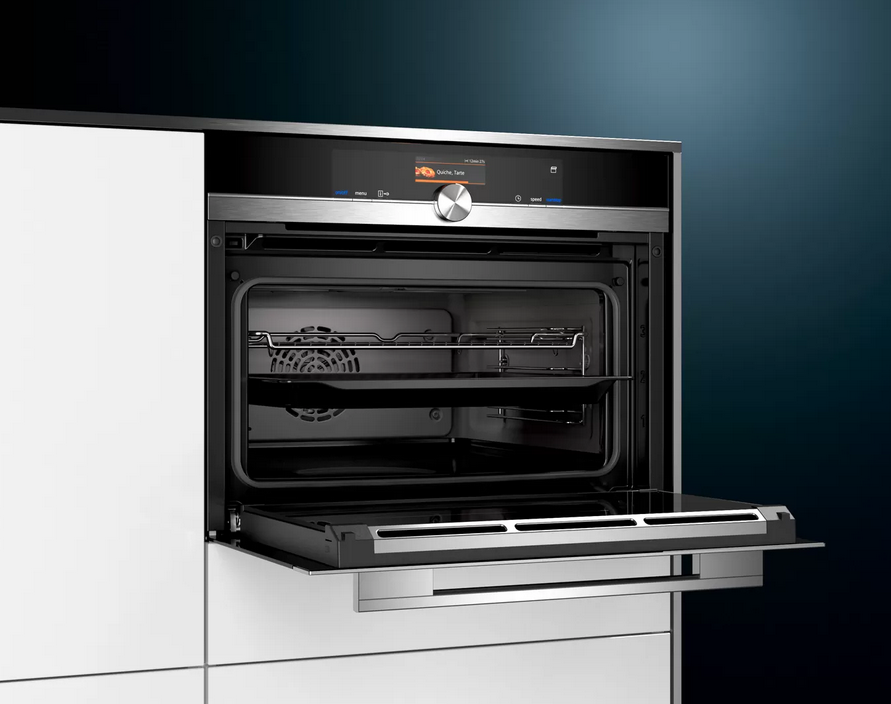

CS656GBS7B open top

Minimum height for installation

450 mm

Maximum height for installation

455 mm

Minimum width for installation

560 mm

Maximum width for installation

568 mm

Depth for installation

550 mm


34.0 kg



1 x steam container, punched, size S, 1 x steam container, punched, size XL, 1 x steam container, unpunched, size S, 1 x grid, 1 x universal pan


Performance/technical information

Energy efficiency rating (acc. EU Nr. 65/2014): A+Energy consumption per cycle in conventional mode: 0.73 kWhEnergy consumption per cycle in fan-forced convection mode: 0.61 kWhNumber of cavities: Main cavityHeat source: electricalCavity volume: 47 litre capacity

Temperature range 30 °C – 250 °C

Location of water tank: Outside cavity

1 l Water tank capacity:

Power cord length 150 cm Cable length

Nominal voltage: 220 – 240 V

Appliance dimension (hxwxd): 455 mm x 594 mm x 548 mm

Please refer to the dimensions provided in the installation manual
