Canon EOS M10

Canon EOS M10

Camera User Guide

Canon EOS M10

Canon EOS M10



Download user manual EOS M10

in PDF format: eos_m10_camera_user_guide

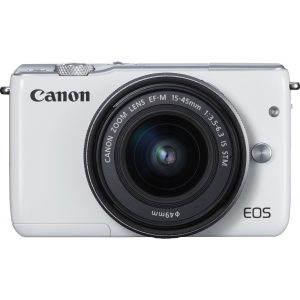

The EOS M10 delivers the best of both worlds by uniting DSLR quality with simplicity in an easy-to-use mirrorless camera. The EOS M10 makes changing lenses and taking creative control of your first stills and videos come naturally. Meet your everyday photography needs with a take-anywhere camera and an EF-M 15-45mm f/3.5-6.3 IS STM lens to jump-start your artistry.



AF ASSIST 1

Specification Details
MAXIMUM POINTS 49

FILE MANAGEMENT

Specification Details
FILE NUMBERING (1) Consecutive numbering, (2) Auto reset
FOLDERS New folders can be automatically created monthly or daily
IMAGE ERASE/PROTECTION Erase: Single image, Selected images, Selected range, All images Protection: Selected images, Selected range, All images. Unprotect all images

IMAGE SENSOR 4

Specification Details
IMAGE SENSOR ASPECT RATIO 3:2
TOTAL PIXELS Approx. 18.5 megapixels

POWER SOURCE 3

Specification Details
BATTERY INDICATOR 4 levels
POWER SAVING LCD monitor turns off after 10, 20, 30 sec or 1, 2, 3 mins. Auto Power Off ECO mode
POWER SUPPLY AC Adapter Kit ACK-E12, Battery charger LC-E12E
POWER REQUIREMENTS 1 x Rechargeable Li-ion Battery LP-E12
BATTERY LIFE Approx. 255 shots (at 23°C, AE 50%, FE 50%) Approx. 210 shots (at 0°C, AE 50%, FE 50%)

SHOOTING 5

Specification Details
DRIVE MODES Single, Continuous, Self timer (2s, 10s, custom)
SHOOTING MODES “Scene Intelligent Auto mode (Stills and Movie), Creative Assist (Stills and Movie), Hybrid Auto, Self Portrait, Portrait, Landscape, Close-up, Sports, Handheld Night Scene, Food, HDR, Fish-eye Effect, Art Bold Effect, Water Painting Effect, Miniature Effect (Stills and Movie), Toy Camera Effect, Soft Focus, Grainy B/W, Program AE , Shutter priority AE, Aperture priority AE, Manual Movie modes: Movie auto exposure, Movie manual exposure”
CONTINUOUS SHOOTING SPEED Max. Approx. 4.6 fps for approx. 1000 JPEG images, 7 images RAW [16][19]
PICTURE STYLES Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

IMAGE PROCESSOR 2

Specification Details
Type DIGIC 6

FILE TYPES 2

Specification Details
RAW+JPEG SIMULTANEOUS RECORDING (Y/N) Yes
RAW+JPEG SIMULTANEOUS RECORDING TYPE RAW + various JPEG compression possible

EXPOSURE 3

Specification Details
HISTOGRAM-BRIGHTNESS: Yes
HISTOGRAM-RGB: Yes
AE LOCK-AUTO: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
AE LOCK-MANUAL: By AE lock button in creative zone modes.
METERING MODES “Real-time metering from the image sensor (1) Evaluative metering (2) Partial metering at center (3) Spot metering (4) Center weighted average metering”

FLASH 1

Specification Details
FLASH EXPOSURE COMPENSATION +/- 2EV
FLASH EXPOSURE COMPENSATION INCREMENT in 1/3 increments
SECOND CURTAIN SYNCHRONISATION Yes
X-SYNC 1/200 sec
RED-EYE REDUCTION Yes
MODES On (Auto FE), On (Manual), Slow Synchro, Off
FLASH EXPOSURE LOCK Yes

FOCUSING 4

Specification Details
MANUAL FOCUS Available in camera menu, MF & AF+MF (Manual focus after One-Shot). MF Peaking available

MONITORING PANEL 4

Specification Details
SCREEN COVERAGE 100%
BRIGHTNESS ADJUSTMENT Adjustable to one of five levels

FILE TYPES 1

Specification Details
STILL IMAGE TYPE “JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0), RAW: RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant “
MOVIE TYPE MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC-LC (stereo)]
MOVIE LENGTH Max duration 29min 59sec, Max file size 4GB
IMAGE SIZE “RAW: (3:2) 5184 x 3456, (4:3) 4608 x 3456, (16:9) 5184 x 2912, (1:1) 3456 x 3456 JPEG 3:2: (L) 5184 x 3456, (M) 4320 x 2880, (S1) 2880 x 1920, (S2) 2304 x 1536, (S3) 720×480 JPEG 4:3: (L) 4608 x 3456, (M) 3840 x 2880, (S1) 2560 x 1920, (S2) 2048 x 1536, (S3) 640×480 JPEG 16:9: (L) 5184 x 2912, (M) 4320 x 2432, (S1) 2880 x 1616 (S2) 1920 x 1080, (S3) 720 x 408 JPEG 1:1: (L) 3456 x 3456, (M) 2880 x 2880, (S1) 1920 x 1920, (S2) 1536 x 1536, (S3) 480 x 480”

SHOOTING 1

Specification Details
IMAGE PROCESSING Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings + Multi Shot NR) Auto correction of lens peripheral illumination and chromatic aberration Creative Assist: Background Blur (5 settings) Brightness (19 levels) Contrast (9 levels) Saturation (9 levels) Color Tone (19 levels) Monochrome (Off/ BW/ S (Sepia)/ B (Blue)/ P (Purple)/ G (Green))

WHITE BALANCE 4

Specification Details
WHITE BALANCE SET TYPE Auto white balance with the imaging sensor

GENERAL FEATURES 2

Specification Details
SLIDE SHOW: PLAYBACK TIME 3/4/5/6/7/8/9/10/15/30 seconds
SLIDE SHOW: REPEAT On/Off
SLIDE SHOW: TRANSITION EFFECT Off, Fade

LIVE VIEW MODE 2

Specification Details
COVERAGE Approx. 100% (horizontally and vertically)

MEMORY CARD 1

Specification Details
MEMORY CARD TYPE SD, SDHC, SDXC (UHS-I compatible)

IMAGE SENSOR 3

Specification Details
IMAGE SENSOR TYPE 22.3 x 14.9mm CMOS
COLOUR FILTER TYPE Primary Colour

EXPOSURE 4

Specification Details
EXPOSURE COMPENSATION +/-3 EV in 1/3 stop increments
ISO SENSITIVITY AUTO(100-12800), 100-12800 in 1/3 stop increments [8] ISO can be expanded to H: 25600 During Movie shooting: Auto (100-6400), 100-6400 (in 1/3-stop increments)

SHUTTER

Specification Details
SHUTTER TYPE Electronically controlled focal-place shutter

SHUTTER SPEED 1

Specification Details
PHOTO MODE 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

FOCUSING 2

Specification Details
AF ASSIST BEAM via LED assist beam
AF LOCK Locked when shutter button is pressed half way or customisable AE Lock Button
AF POINT SELECTION Automatic selection (Face+Tracking), Manual selection (1-point AF)
AF MODES One-Shot AF and Servo AF

LENS 4

Specification Details
LENS MOUNT EF-M (EF and EF-S lenses compatible via Mount adapter EF-EOS M)

LENS 3

Specification Details
IMAGE STABILIZATION DISPLAY Enable/Disable Image Stabilizer on compatible lens Dynamic IS available with compatible lenses

MONITORING PANEL 3

Specification Details
MENU CATEGORIES (1) Shooting menu (x5) (2) Playback menu (x4) (3) Setup menu (x4) (4) Custom Functions menu
PLAYBACK DISPLAY FORMATS (1) Single image with information (Customisable with 6 levels) (2) Single image (3) Index display (6/12/42/110 images) (4) Jump Display
DISPLAY OPTIONS Switchable via INFO. Button (1) Quick Control Screen (2) Liveview image no information (3) Liveview image full info (4) Liveview image basic info

GENERAL FEATURES 1

Specification Details
INTELLIGENT ORIENTATION SENSOR Yes
PLAYBACK ZOOM 1.5x – 10x enabled in 10 steps

COMPATIBLE SOFTWARE

Specification Details
SEQUENCE 2
COMPATIBLE SOFTWARE
  • Image Processing – Digital Photo Professional
  • Other – Picture Style Editor, EOS Utility, Image Transfer Utility
SEQUENCE 2
COMPATIBLE SOFTWARE
  • Image Processing – Digital Photo Professional
  • Other – Picture Style Editor, EOS Utility, Image Transfer Utility

WHITE BALANCE 5

Specification Details
SETTINGS AWB, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom. White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9.

MONITORING PANEL 2

Specification Details
SCREEN TYPE-TYPE Tilt type 7.5 cm (3.0”) Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots.
DISPLAYED LANGUAGES “25 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese”

LENS 10

Specification Details
FOCAL LENGTH MULTIPLIER Equivalent to 1.6x the focal length of the lens

PHYSICAL SPECIFICATIONS 2

Specification Details
PRODUCT DIMENSIONS (WxHxD) Approx. 108 x 66.6 x 35 mm
PRODUCT WEIGHT INPUT-1 301 g
OPERATING HUMIDITY RANGE 85% or less humidity
OPERATING TEMPERATURE RANGE 0 – 40 °C
PRODUCT WIDTH 108 mm
PRODUCT DEPTH 35
PRODUCT HEIGHT 66.6
PRODUCT WEIGHT NOTES – 1 (CIPA testing standard, including battery and memory card)
PRODUCT WEIGHT Approx. 301 g ((CIPA testing standard, including battery and memory card))

OPERATING SYSTEM COMPATIBILITY

Specification Details
OS Windows
SEQUENCE 2
VERSION
  • Windows 10 / 8.1 / 8 / 7 SP1
  • Mac OS X 10.9 / 10.10 / 10.11
OS Mac
SEQUENCE 2
VERSION
  • Windows 10 / 8.1 / 8 / 7 SP1
  • Mac OS X 10.9 / 10.10 / 10.11

FOCUSING 1

Specification Details
SELECT AF POINT ON SCREEN Indicated on LCD monitor
AF WORKING_RANGE EV 1-18 (at 23°C, ISO 100, with EF-M 22mm f/2 STM)

IMAGE SENSOR 2

Specification Details
EFFECTIVE PIXELS: STILL IMAGES Approx. 18.0 megapixels

SHOOTING 2

Specification Details
COLOUR SPACE sRGB

FILE TYPES- MOVIE SIZE & FRAME RATE

Specification Details
MOVIE SIZE & FRAME RATE: VGA 640 x 480 (29.97, 25 fps)
MOVIE SIZE & FRAME RATE: MINIATURE EFFECT-HD, VGA (6, 3, 1.5 fps)
MOVIE SIZE & FRAME RATE: HYBRID AUTO-HD (30 fps)
MOVIE SIZE & FRAME RATE: FULL HD 1920 x 1080 (29.97, 25, 23.976 fps)
MOVIE SIZE & FRAME RATE: HD 1280 x 720 (59.94, 50 fps)

VIEWFINDER

Specification Details
DEPTH OF FIELD PREVIEW (Y/N) Yes
DEPTH OF FIELD PREVIEW TYPE via customisable Movie Button

LIVE VIEW MODE 1

Specification Details
FOCUSING: MANUAL FOCUS Magnify the image 5x or 10x at any point on screen plus MF Peaking
FOCUSING: AUTO Hybrid CMOS AF III (Face + Tracking, 1-point AF)
FRAME RATE nullfps
DISPLAY OPTIONS Grid overlay (x2), Histogram, Multi aspect ratios
TYPE Hybrid CMOS AF System. Phase detection pixels built onto imaging sensor

WHITE BALANCE 2

Specification Details
CUSTOM WHITE BALANCE Yes, 1 setting can be registered

FLASH 2

Specification Details
BUILT-IN FLASH GUIDE NUMBER (ISO 100) 5
BUILT-IN FLASH COVERAGE up to 15mm focal length (35mm equivalent: 24mm)
BUILT-IN FLASH RECYCLE TIME Approx. 3 seconds

EXPOSURE 2

Specification Details
HIGHLIGHT ALERT Yes
METERING RANGE EV 1-20 (at 23°C, ISO 100)

IMAGE SENSOR 1

Specification Details
LOW-PASS FILTER Built-in/Fixed
SENSOR CLEANING EOS integrated cleaning system

SOFTWARE 2

Specification Details
FIRMWARE UPDATE Update possible by the user
