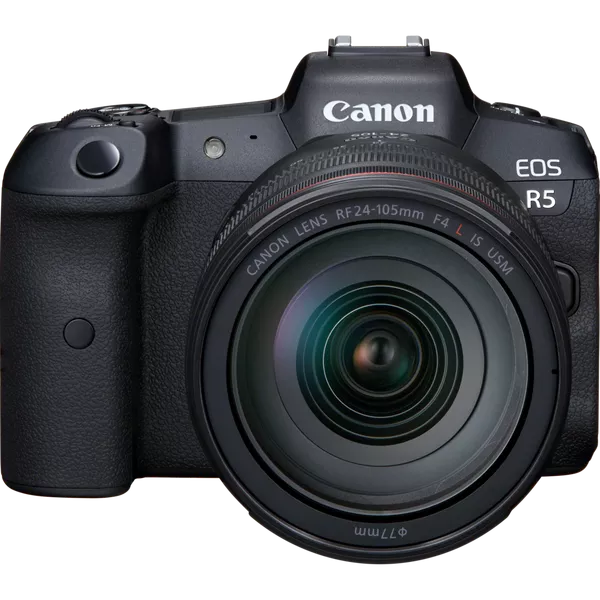

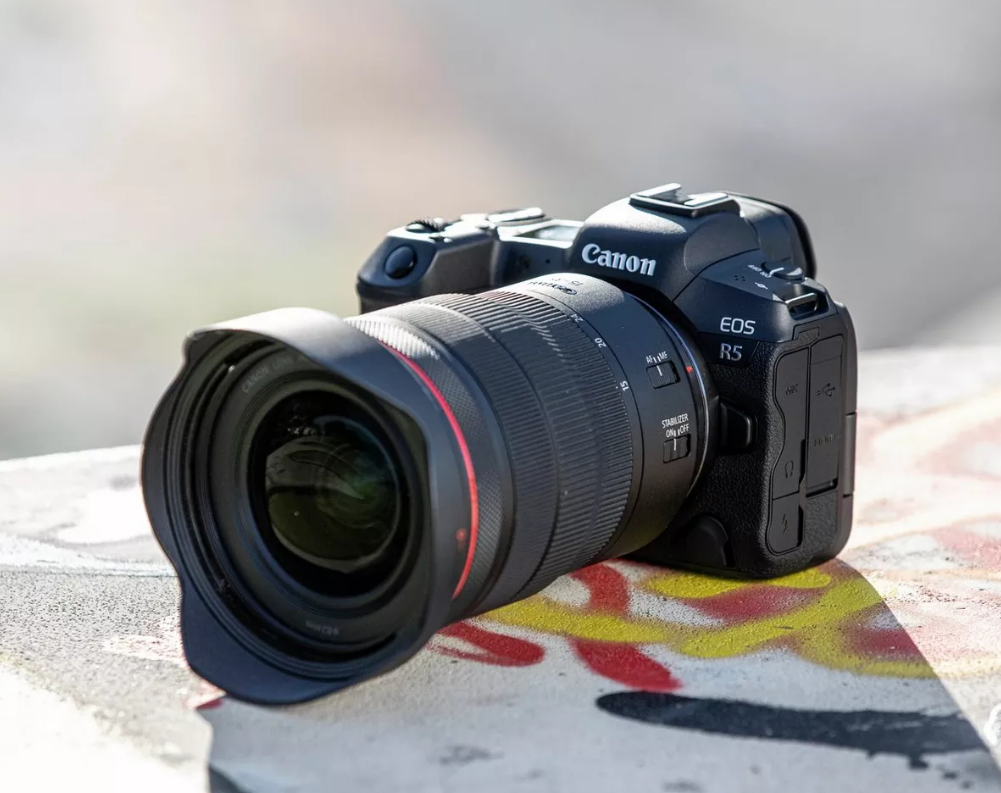

Canon EOS R5

EOS R5

Professional mirrorless redefined

Whatever you shoot, however you shoot it, the EOS R5 will let you be creative in ways you simply couldn’t before. Capture sensational 45 megapixel photos at up to 20 frames per second*, or cinematic 12 bit 8K RAW video using the entire width of the camera’s sensor. Advanced AF is programmed using deep-learning artificial intelligence, while in-body image stabilisation works in concert with a lens’s own IS to provide up to 8 stops* of protection against camera shake.

EOS R5
EOS R5

Download EOS R5 user guide in PDF format: EOS_R5_Advanced_User_Guide_EN

Operating Environment

1 – 40 °C, 85% or less humidity

Dimensions (W x H x D)

138.5 x 97.5 x 88mm

Weight (Body Only)

Approx. 650 g (738 g with card and battery)
EOS R5
EOS R5

Specifications

  • 45 megapixel resolution

    Reproduce the most intricate of detail

  • 20 frames per second

    Turn fleeting moments into sensational images

  • Full Frame internal 8K RAW video

    24/25/30p 12-bit RAW video that looks as good as real life

  • Full Frame 4K/120P video

    Shoot 4:2:2 10-bit high frame-rate video to enhance any creative production

  • Up to 8-stop Image Stabilizer*

    Shoot hand held where you couldn’t before.

  • ISO 100-51,200

    Superb image quality even in poor light

  • Built in Wi-Fi & Bluetooth

    Stay connected and send images on location

  • 5940 autofocus positions

    Accurate focus wherever your subject moves

  • CFexpress and SD card slots

    Maximum speed, maximum compatibility

Specifications in detail

Image Sensor

  • Type
    36 x 24 mm CMOS
  • Effective Pixels
    Approx. 45 megapixels
  • Total Pixels
    Approx. 47.1 megapixels
  • Aspect Ratio
    3:2
  • Low-Pass Filter
    Built-in/Fixed
  • Sensor Cleaning
    EOS integrated cleaning system
  • Colour Filter Type
    Primary Colour
  • Sensor Shift-IS
    Yes, up to 8-Stops advantage depending on the lens used 1

Image Processor

  • Type
    DIGIC X

Lens

  • Lens Mount
    RF (EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R Drop-In Filter Mount Adapter EF-EOS R) EF-M lenses are not compatible
  • Focal Length
    Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S

Focusing

  • Type
    Dual Pixel CMOS AF
  • AF System / Points
    100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes 100% horizontal and 90% vertical with manual selection and large zone modes 2
  • AF Working Range
    EV -6 – 20 (at 23°C & ISO100) 3
  • AF Modes
    One Shot Servo AF AI Focus AF (in A+ Scene Intelligent Auto mode )
  • AF Point Selection
    Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected Manual selection: 1-point AF (AF frame size can be changed) 5940 (stills)/ (4500) movie AF positions available Manual selection: AF point Expansion 4 points (up, down, left, right) Manual selection: AF point Expansion surrounding points Manual selection: Zone AF (all AF points divided into 9 focusing zones) Manual selection: Large Zone AF (Vertical) Manual selection: Large Zone AF (Horizontal)
  • AF Lock
    Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
  • AF Assist Beam
    Emitted by built in LED or optional dedicated Speedlite (flash)
  • Manual Focus
    Selected on lens

Exposure Control

  • Metering Modes
    Real-time with image sensor, 384-zone metering. (1) Evaluative metering (linked to All AF points) (2) Partial metering (approx. 6.1% of viewfinder at centre) (3) Spot metering: Centre spot metering (approx. 3.1% viewfinder at centre) AF point-linked spot metering not provided (4) Centre weighted average metering
  • Metering Brightness Range
    EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
  • AE Lock
    Auto: AE lock takes effect when focus is achieved Manual: By AE lock button in P, Av, Fv, Tv and M modes
  • Exposure Compensation
    `+/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
  • AEB
    +/-3 EV in 1/3 or 1/2 stop increments
  • Anti-flicker Shooting
    Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
  • ISO Sensitivity

  • Auto 100-51,200 (in 1/3-stop or 1 stop increments) ISO can be expanded to L:50, H:102,400 4

Shutter

  • Type
    Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
  • Speed
    30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
  • Shutter Release
    Soft touch electromagnetic release

White Balance

  • Type
    Auto white balance with the imaging sensor
  • Settings
    AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation: 1. Blue/Amber +/-10 2. Magenta/Green +/-10
  • WB Bracketing
    `+/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

  • Type
    0.5-inch OLED colour EVF
  • Dot Count
    5.76 Million dots
  • Coverage (Vertical/Horizontal)
    Approx. 100%
  • Magnification
    Approx. 0.76x
  • Eyepoint
    Approx. 23mm (from eyepiece lens centre)
  • Dioptre Correction
    -4 to +2 m-1 (dioptre)
  • Viewfinder Information
    Shutter speed, Aperture, ISO speed, AF point information, Exposure level indicator, Number of remaining exposures, Exposure compensation, Battery level, Electronic shutter, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Dual Pixel RAW shooting, Self-timer shooting mode, Maximum burst, AF method, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still/video cropping, Shooting mode, Aspect ratio, Scene icons Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi on/off, , Histogram, Electronic level, Focus distance scale in manual focus, IS system, Audio Level – Manual (video), recording time remaining (video), headphone level (video), Video recording resolution frame rate and compression (video) Rec indicator (video)
  • Depth of Field Preview
    Yes, via customised button
  • Eyepiece Shutter
    N/A

LCD Monitor

  • Type
    8cm (3.15″) Clear View LCD II, approx. 2.1 million dots
  • Coverage
    Approx. 100%
  • Viewing Angle (Horizontally/Vertically)
    Approx. 170° vertically and horizontally
  • Coating
    Anti-smudge.
  • Brightness Adjustment
    Manual: Adjustable to one of seven levels Colour Tone Adjustment: 4 settings
  • Touch Screen Operations
    Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
  • Display Options
    (1) Basic Camera settings (2) Advance Camera settings (3) Camera settings plus histogram and dual level display (4) No info (5) Quick Control Screen (6) Display off

Flash

  • Modes
    E-TTL II Auto Flash, Metered Manual
  • X-Sync
    1/200sec mechanical shutter / 1/250th electronic 1st curtain
  • Flash Exposure Compensation
    +/- 3EV in 1/3 or 1/2 stop increments with EX series Speedlite flashes
  • Flash Exposure Bracketing
    Yes, with compatible External Flash
  • Flash Exposure Lock
    Yes
  • Second Curtain Synchronisation
    Yes via Speedlite
  • HotShoe / PC Terminal
    Yes/No
  • External Flash Compatibility
    E-TTL II with EX series Speedlite, wireless multi-flash support
  • External Flash Control
    via camera menu screen

Shooting

  • Modes
    Stills; Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3) Movie: Auto Exposure, Manual
  • Picture Styles
    Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
  • Colour Space
    sRGB and Adobe RGB
  • Image Processing
    Dual Pixel RAW – Portrait Relighting, Background Clarity ( in camera) Highlight Tone Priority (2 settings) Auto Lighting Optimizer (4 settings) Long exposure noise reduction Clarity High ISO speed noise reduction (4 settings) (stills and video) Lens optical correction – Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only) – Diffraction correction, Digital Lens Optimizer (during/after still photo shooting) Resize to M, S1, S2 Cropping of images (JPEG/HEIF) – Aspect ratios 3:2, 4:3, 16:9, 1:1 – Switch between vertical and horizontal cropping orientation – Image straightening – Cropping frame can be moved using touch screen operation RAW image processing Multiple exposure HDR HEIF to Jpeg conversion
  • Drive Modes
    Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote)
  • Continuous Shooting
    Max. Approx. 12fps. with Mechanical shutter or 20fps with electronic shutter speed maintained for 350 JPEG or 180 RAW images 6
  • Interval Timer
    Built in

File Type

  • Still Image Type
    JPEG: 2 compression options RAW: RAW, C-RAW 14 bit (14-bit with Mechanical shutter and Electronic 1st Curtain, 13-bit A/D conversion with H+ mode, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition) HEIF: 10bit HEIF is available in HDR shooting with [HDR PQ] set to [Enable] Complies with Exif 2.31 and Design rule for Camera File system 2.0 Complies with Digital Print Order Format [DPOF] Version 1.1
  • RAW+JPEG Simultaneous Recording
    Yes, any combination of RAW + JPEG or RAW + HEIF possible
  • Image Size
    JPEG / HEIF
    3:2 ratio (L, RAW, C-RAW) 8192×5464, (M1) 5808×3872, (S1) 4176×2784, (S2) 2400×1600
    1.6x (crop) (L) 5088×3392, (S2) 2400×1600
    4:3 ratio (L) 7280×5464, (M1) 5152×3872, (S1) 3712×2784, (S2) 2112×1600
    16:9 ratio (L) 8192×4608, (M1) 5808×3264, (S1) 4176×2344, (S2) 2400×1344
    1:1 ratio (L) 5456×5456, (M1) 3872×3872, (S1) 2784×2784, (S2) 1600×1600
  • Folders
    New folders can be manually created, named and selected
  • File Numbering
    (1) Consecutive numbering (2) Auto reset (3) Manual reset
  • File Naming
    2 User presets

EOS Movie

  • Movie Type
    MP4 Video: 8K DCI/ UHD (17:9 / 16:9) 4K DCI/ UHD (17:9 / 16:9), Full HD 7
  • Movie Size
    8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) RAW, intra or inter frame
    8K UHD (16:9) 7680 x 4320 (29.97, 25, , 23.98 fps) intra or inter frame
    4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) intra or inter frame
    4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
    Full HD (16:9) 1920 x 1080 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
    Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame
  • Colour Sampling (Internal Recording)
    8K/ 4K/ Full HD – YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
  • Canon Log
    Yes, Canon Log 1 , Canon Log 3
  • Movie Length
    Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT formatted SD card. 11
  • High Frame Rate Movie
    MOV Video: 4K – DCI 4096×2160 or UHD 3840×2160 UHD at 100fps or 119.9fps (9) Recorded as 1/4-speed slow motion movie Single scene maximum recording up to 7min 29sec.
  • Frame Grab
    35.4-megapixel JPEG still image frame grab from 8K DCI movie possible 33.2-megapixel JPEG still image frame grab from 8K UHD movie possible 8.8-megapixel JPEG still image frame grab from 4K DCI movie possible 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)
  • Bitrate / Mbps

    CRM:

    8k Raw (29.97p/25.00p/24.00p/23.98p): Approx. 2600 Mbps

    8k Raw (Light) (29.97p/25.00p): Approx. 1700 Mbps

    8k Raw (Light) (24.00p/23.98p): Approx. 1350 Mbps

    MOV: MP4 H.264 Canon Log off

    8K (29.97p/25.00p/24.00p*/23.98p) ALL-I: Approx. 1300 Mbps

    8K (29.97p/25.00p/24.00p*/23.98p) IPB: Approx. 470 Mbps

    8K (29.97p/25.00p/24.00p*/23.98p) IPB (Light): Approx. 230 Mbps

    4K (119.9p / 100p) ALL-I: Approx. 1880 Mbps

    4K (59.94p/50.00p) ALL-I: Approx. 940 Mbps

    4K (59.94p/50.00p) IPB: Approx. 230 Mbps

    4K (59.94p/50.00p) IPB (Light): Approx. 120 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) ALL-I: Approx. 470 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) IPB: Approx. 120 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) IPB (Light): Approx. 60 Mbps

    Full HD (119.9p/100p) ALL-I: Approx. 360 Mbps

    Full HD (59.94p/50.00p) ALL-I: Approx. 180 Mbps

    Full HD ( 59.94p/50.00p) IPB : Approx. 60 Mbps

    Full HD ( 59.94p/50.00p) IPB (Light): Approx.35 Mbps

    Full HD (29.97p/25.00p/24.00p/23.98p) ALL-I: Approx. 90 Mbps

    Full HD (29.97p/25.00p/24.00p/23.98p) IPB: Approx. 30 Mbps

    Full HD (29.97p/25.00p) IPB (Light) : Approx. 12 Mbps

    8K Time Lapse (29.97p/25.00p) ALL-I: Approx. 1300 Mbps

    4K Time Lapse (29.97p/25.00p)ALL-I : Approx. 470 Mbps

    Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 90 Mbps

    MOV: MP4 H.265 Canon Log on

    8K (29.97p/25.00p/24.00p*/23.98p) ALL-I: Approx. 1300 Mbps

    8K (29.97p/25.00p/24.00p*/23.98p) IPB: Approx. 680 Mbps

    8K (29.97p/25.00p/24.00p*/23.98p) IPB (Light): Approx.340 Mbps

    4K (119.9p / 100p) ALL-I : Approx. 1880 Mbps

    4K (59.94p/50.00p) ALL-I : Approx. 1000 Mbps

    4K (59.94p/50.00p) IPB: Approx. 340 Mbps

    4K (59.94p/50.00p) IPB (Light): Approx. 170 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) ALL-I: Approx. 470 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) IPB: Approx. 170 Mbps

    4K (29.97p/25.00p/24.00p/23.98p) IPB (Light): Approx. 85 Mbps

    Full HD (59.94p/50.00p) ALL-I: Approx. 230 Mbps

    Full HD (59.94p/50.00p) IPB: Approx. 90 Mbps

    Full HD (59.94p/50.00p) IPB (Light): Approx. 50 Mbps

    Full HD (29.97p/25.00p/24.00p/23.98p) ALL-I: Approx. 135 Mbps

    Full HD (29.97p/25.00p/24.00p/23.98p) IPB: Approx. 45 Mbps

    Full HD (29.97p/25.00p) IPB (Light): Approx. 28 Mbps

    8K Time Lapse (29.97p/25.00p) ALL-I: Approx. 1300 Mbps

    4K Time Lapse (29.97p/25.00p) ALL-I : Approx. 470 Mbps

    Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 135 Mbps

  • Microphone
    Built-in mono microphone (48 Khz, 16-bit x 2 channels)
  • HDMI Display
    Output to external monitor only (output of images and shooting information, images are recorded to the card) Camera screen and External Monitor output ( Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)
  • HDMI Output
    4K (DCI) 59.94p / 50.00p/29.97p /25.00p/24.00p/ 23.98p, 4K (UHD) 59.94p / 50.00p/ 29.97p / 25.00p / 23.98p, Full HD 59.94p / 59.94i, 50.00p / 50.00i 480p 59.94p 576p 50p Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible
  • Focusing
    Dual Pixel CMOS AF with Eye/Face Detection and Animal Tracking AF, Movie Servo AF Manual Focus (Peaking and Focus Guide available)
  • ISO
    Auto: 100-6400, H: 51200 Manual: 100-25600, H1: 51200

Other Features

  • Custom Functions
    23 Custom Functions
  • Metadata Tag
    User copyright information (can be set in camera) Image rating (0-5 stars) IPTC data (registered with EOS Utility or Moblie File Transfer) Image transfer with caption (Caption registered with EOS Utility)
  • LCD Panel / Illumination
    Yes/Yes
  • Water/Dust Resistance
    Yes
  • Voice Memo
    Yes
  • Intelligent Orientation Sensor
    Yes
  • Playback Zoom
    1.5x – 10x in 15 steps
  • Display Formats
    (1) Single image (2) Single image with information (2 levels) Basic – Shooting information (shutter speed, aperture, ISO and Image quality) Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating) (8) Movie edit (9) RAW processing (10) Rating
  • SlideShow
    Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating Playback time: 1/2/3/5/10 or 20 seconds Repeat: On/Off
  • Histogram
    Brightness: Yes RGB: Yes
  • Highlight Alert
    Yes
  • Image Erase
    Single image, select range, Selected images, Folder, Card
  • Image Erase Protection
    Erase protection of Single image, Folder or Card all found images (only during image search)
  • Self Timer
    3 or 10 sec.
  • Menu Categories
    (1) Shooting menu (2) AF Menu (3) Playback menu (4) Network (5) Setup menu (6) Custom Functions menu (7) My Menu
  • Menu Languages
    29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
  • Firmware Update
    Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter)

Interface

  • Computer
    SuperSpeed USB 3.1 Gen 2 USB C connector
  • Wi-Fi
    Wireless LAN (IEEE802.11a/b/g/n/ac) (5Ghz /2.4 GHz), with Bluetooth 4.2 support, Features supported – EOS Utility, Smartphone, Upload to image.canon, Wireless printing
  • Other
    HDMI micro out (Type D), External Microphone In/Line In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal) Flash sync socket

Direct Print

  • PictBridge
    Not supported

Storage

  • Type
    1x CFexpress type B, 1x SD/SDHC/SDXC and UHS-II

Supported Operating System

  • PC
    Windows 8.1 and Windows 10 (tablet mode not supported)
  • Macintosh
    OS X v10.12, 10.13, 10.14,10.15, 11

Software

  • Image Processing
    Digital Photo Professional 4.14. or later, Digital Photo Professional Express mobile app ( iOS only) (RAW Image Processing not DUAL PIXEL RAW on DPP Express moible)
  • Other
    EOS Utility 3.12.3 or later (incl. Remote Capture), Picture Style Editor, WFT Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera Connect app and image.canon app (iOS/Android) Mobile File Transfer (iOS/Android)

Power Source

  • Batteries
    Rechargeable Li-ion Battery LP-E6NH (supplied)/LP-E6N
  • Battery Life
    With LCD Approx. 490 shots (at 23°C) With LCD Approx. 470 (at 0°C) With Viewfinder Approx. 320 shots (at 23°C) With Viewfinder Approx. 310 (at 0°C)
  • Battery Indicator
    6 levels + percentage
  • Power Saving
    Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
  • Power Supply & Battery Chargers
    Battery charger LC-E6E (supplied), AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6, PD-E1 USB power adapter

Accessories

  • Wireless File Transmitter
    Wireless File Transmitter WFT-R10B
  • Lenses
    All RF lenses (EF & EF-S via Lens adapters)
  • Lens Adapters
    Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R Drop-In Filter Mount Adapter EF-EOS R
  • Flash
    Canon Speedlite (EL-1, EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
  • Remote Controller / Switch
    Remote control with N3 type socket, Wireless Remote Control BR-E1, Infrared Remote RC-6 and Speedlite 600EX-II-RT
  • Other
    BG-R10 battery grip, GP-E2 GPS receiver (digital compass not supported), Stereo Microphone DM-E1 / DM-E100

Physical Specifications

  • Body Materials
    Magnesium Alloy body and Chassis with some components consisting of polycarbonate with glass fibre
  • Operating Environment
    1 – 40 °C, 85% or less humidity
  • Dimensions (W x H x D)
    138.5 x 97.5 x 88mm
  • Weight (Body Only)
    Approx. 650 g (738 g with card and battery)



Repair Centres





Leave a Reply

Your email address will not be published. Required fields are marked *
