FM2-A85XA-G65 MSI motherboard user manual

  • by

FM2-A85XA-G65 series MS-7793 (v1.x) Mainboard

AMD A85X chipset

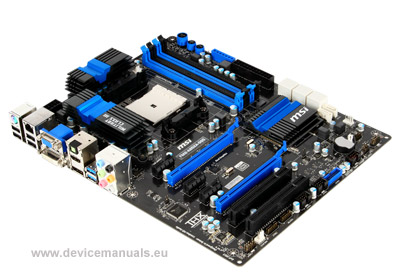

Motherboard FM2-A85XA-G65

Download MSI FM2-A85XA-G65 user manual
in PDF format: FM2-A85XA-G65-EN

• Military Class III components: Top quality & stability
• OC Genie II: Auto OC to boost performance in 1 sec
• ClickBIOS II: Easy-to-use UEFI BIOS interface
• Super Charger: fast charge iPad/iPhone/smartphone
• Support USB 3.0 & SATA 6Gb/s

CPU

• AMD® A10/A8/A6/A4-series processors for the  FM2 package
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• AMD® A85X Chipset

Main Memory • Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866/2133*/2400*(OC*) DRAM, 64GB Max* The maximum 64 GB of system memory can be reached while using 16 GB (or above) memory modules. We will update the memory test report on the website when the new memory modules are available on the market.
* Due to the limitation of 32-bit Windows operating system, when more than 4 GB memory installed, the actual size can be used will be less than that.

Slots• 2 PCI Express gen2 x16 slots
– PCI_E2 supports up to PCIE x16 speed (when PCI_E5 is empty) or PCIe x8 speed (when PCI_E5 is installed)
– PCI_E5 supports up to PCIE x8 speed
• 3 PCIE 2.0 x1 slots
• 2 PCI slots
On-Board SATA • 8x SATA 6Gb/s ports by AMD® A85X
– Supports storage and data transfers at up to 6Gb/s
– SATA1~8 ports support RAID 0/1/5/10 modes by AMD® A85X
Audio• Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
LAN• Realtek PCI-E GbLAN controller RTL8111E
– Supports 10Mb/s, 100Mb/s and 1000Mb/s
– Compliance with PCI-Express Bus specification v1.0a
USB 3.0• 2 USB 3.0 rear ports by AMD® A85X
• 1 USB 3.0 onboard connector by AMD® A85X

Internal I/O Connectors– 1 x ATX 24-pin power connector
– 1 x ATX 8-pin 12V CPU power connector
– CPU x 1 / System x 4 FAN connectors
– 1 x Front panel audio connector
– 1 x Front panel connector
– 3 x USB 2.0 connectors
– 1 x USB 3.0 connector
– 8 x Serial ATA 6Gb/s connectors
– 1 x Clear CMOS jumper
– 1 x Chassis Intrusion connector
– 1x MultiConnect Panel connector
– 1x Power button
– 1x Reset button
– 1x OC Genie button
– 1x Clear CMOS button
– 1x Voltage Checkpoints connector

Back Panel I/O Ports

-1 x PS/2 keyboard/mouse combo port
– 1x Optical S/PDIF-out port
– 1x VGA port**, supports a maximum resolution of 1920×1200@60 Hz
– 1x dual link DVI-D port**, supports a maximum resolution of 2560×1600@60 Hz
– 1x HDMI port**, supports a maximum resolution of 1920×1080@60 Hz
– 1x DisplayPort**, supports a maximum resolution of 2560×1600@60 Hz
– 4 x USB 2.0 ports
– 2 x USB 3.0 ports
– 1 x RJ45 LAN jack
– 1 x 6 in 1 audio jack

**This motherboard supports dual-display function by two onboard graphics output ports (HDMI+VGA, HDMI+DVI-D, VGA+DVI-D, VGA+DisplayPort & DVI-D+DisplayPort).
**This motherboard also supports triple-d splay function by three onboard graphics output ports (HDMI+VGA+DVI-D & DisplayPort+VGA+DIV-D).
**Please note that, the HDMI port and DisplayPort can not be used simultaneously.

MSI Reminds You…
• The graphic output can only work with CPUs with GPUs core inside.
Dimension• 30.5cm(L) x 24.5cm(W) ATX Form FactorMounting

• 9 mounting holes
