Huawei P30 user manual

Huawei P30

The Kirin 980 is the world’s first 7nm mobile process chipset with stronger performance and lower power consumption. This innovative chipset plus up to 6GB of RAM and 128GB of memory storage,4 reveal a performance powerhouse in the HUAWEI P30.

Huawei P30
Huawei P30

Download user manual

HUAWEI P30 in PDF format: HUAWEI_P30_User_Guide

Specifications

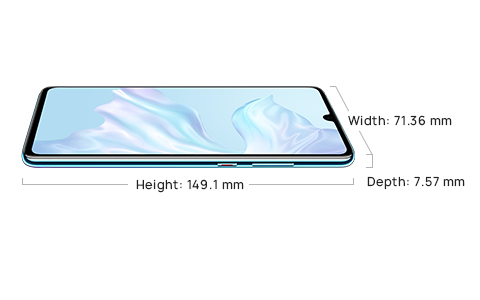

Size

Width:

71.36mm

Height:

149.1mm

Depth:

7.57mm

Weight:

Approx. 165g (including the battery)

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

Colour
  • Breathing Crystal
  • Aurora
  • Black
Display

Size:
6.1 inches
Note: With a rounded corners design on the dewdrop display, the diagonal length of the screen is 6.1 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

Colour:
16.7 million colours

Colour Gamut:
Wide Color Gamut(DCI-P3)

Type:
OLED

Resolution:
FHD+ 2340*1080
(Note: The resolution measured as a standard rectangle, with a rounded corners design on the dewdrop display,the effective pixels are slightly less.)

Operating System

Android 9

Memory

6 GB RAM + 128 GB ROM

*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

Network

ELE-L29:
Primary SIM card:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/26/28/32
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/4/5/6/8/19
3G TDS: Bands 34/39
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

Secondary SIM card:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/26/28
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/4/5/6/8/19
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

ELE-L09:
4G FDD LTE: Bands 1/2/3/4/5/6/7/8/9/12/17/18/19/20/ 26/28/32
4G TDD LTE: Bands 34/38/39/40
3G WCDMA: Bands 1/2/5/8/4/6/19
3G TDS: Bands 34/39
2G GSM: Bands 2/3/5/8(850/900/1800/1900 MHz)

*In Dual SIM version, either card slot can be set to accommodate the primary or secondary SIM card.
*Functions available on the live network depend on the situations of carrier’s network and related services deployment.

Connectivity

802.11 a/b/g/n/ac (wave2), 2.4 GHz and 5 GHz
Bluetooth 5.0, BLE, SBC, AAC, aptX, aptX HD, LDAC and HWA Audio

Type-C,USB 3.1 GEN1*
*This function should be used with the USB 3.1 GEN1 cable (non-standard USB cable, need to be purchased separately) that supports this function.
*The standard USB cable supports USB 2.0.

3.5 mm earjack
PC Data Synchronisation

Sensors

Ambient Light Sensor
In-Screen Fingerprint Sensor
Gyroscope
Compass
Proximity Sensor
Gravity Sensor
Hall Sensor
Laser Sensor
Colour Temperature Sensor

Camera

Rear Camera:
Leica Triple Camera:
40 MP (Wide Angle Lens, f/1.8 aperture) + 16 MP (Ultra Wide Angle Lens, f/2.2 aperture) + 8 MP (Telephoto, f/2.4 aperture,OIS), supports autofocus (laser focus, phase focus, contrast focus), supports AIS (HUAWEI AI Image Stabilization).
Note: In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

Front Camera:
32 MP, f/2.0 aperture
Note: In different photo modes, the number of pixels may be slightly different, please refer to the actual situation.

*The photo pixels may vary depending on the shooting mode.

Audio

Dolby Atmos (Dolby Digital, Dolby Digital+, Dolby AC-4)
mp3, mp4, 3gp, ogg, amr, aac, flac, wav, midi

Video

3gp, mp4

EMUI

EMUI 9.1

Battery

3650mAh (Typical Value)*

* The Battery Rated Capacity is 3550mAh.
**Typical value. Actual capacity may vary slightly.
This capacity is the nominal battery capacity. The actual battery capacity for each individual phone may be slightly above or below the nominal battery capacity.
***Non-removable battery. Removing the battery may cause damage to the device. To replace or repair the battery, please visit an authorized HUAWEI Service Centre.

Charging

HUAWEI SuperCharge

NFC

Read Write mode / Peer to Peer mode / Card Emulation mode (payment by *SIM card, or HCE) is supported.

*The SIM card used for SIM card payment can only be inserted into the SIM1 card slot.

Splash, Water, and Dust Resistant

IP53

Tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP53 as described by the international standard IEC 60529).

Water and dust-proofing are not permanent, and resistance may decrease as a result of normal wear over time. Do not charge the phone when it is wet or in moist environments. Refer to the manual for cleaning and drying instructions. Submersion in liquid and the resulting damage is not covered by the warranty.

*IP53 is splash, water, and dust resistant and were tested under controlled laboratory conditions with a rating of IP67 under IEC standard 60529. Splash, water, and dust resistance are not permanent conditions and resistance might decrease as a result of normal wear.
Refer to the user guide for cleaning and drying instructions. Liquid damage not covered under warranty.

In the box

Phone(Built-in battery) x 1
Charger x 1
Type-C Cable x 1
3.5 mm Headset x 1
Quick Start Guide x 1
Eject Tool x 1
Warranty Card x 1
(Note: Subject to the actual product.)

PROCESSORS

HUAWEI Kirin 980 Octa-core Processor
Dual NPUs(Neural-network Processing Unit)
2*Cortex-A76 Based 2.6GHz+ 2*Cortex-A76 Based 1.92GHz + 4*Cortex-A55 1.8GHz

LOCATION

GPS (L1 + L5 Dual Band) / AGPS / Glonass / BeiDou / Galileo (E1 + E5a Dual Band) / QZSS (L1 + L5 Dual Band)
