Husqvarna TS 138

  • by
Husqvarna TS 138

Garden-Tractor Husqvarna TS 138

The TS 138 is a user-friendly tractor ideal for homeowners having small to mid-size gardens. It is an efficient tractor with side ejection, smart design and ergonomics. Has a powerful Husqvarna Series engine with choke less start and convenient pedal-operated transmission. Can be complimented with a collector and BioClip® cover.

Husqvarna TS 138

Husqvarna TS 138



Download  User  guide  Husqvarna TS 138  in PDF format: TS_138

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its design and features.

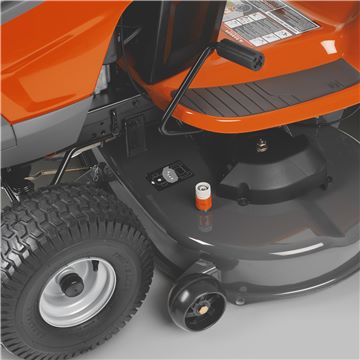

Powder-coated Deck

Powder-coated Deck

Powder-coated decks for exceptional durability and four anti-scalp rollers as well as a nose roller to help prevent scalping grass for a professional cut, every time.

Reverse Operating System

Reverse Operating System (ROS)

For improved safety. The ROS disengages the cutting blades when driving in reverse unless key is set to “mow in reverse” mode.

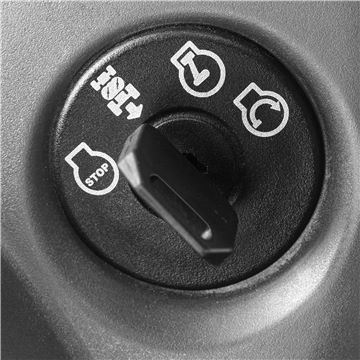

Chokeless start

Chokeless start

Easy to get operating with automatic choke. Just turn the key and go.

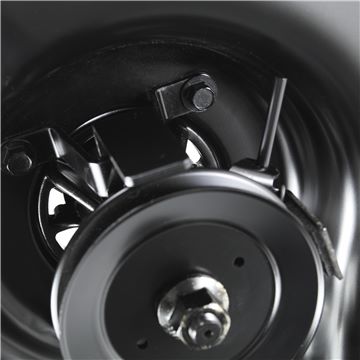

Air Induction

Air Induction

A powerful air stream lifts the grass before it is cut, for excellent cutting and collection of both grass and leaves.

Specifications

Do you need further details to make the right decision? Learn more in the specifications section below. Locate your dealer

Cutting deck

Cutting width
97 cm
Nose roller
No
Anti-scalp wheels
0

Drive system

Drive method
Pedal-operated
Speed reverse max
3.5 km/h
Speed reverse min
0 km/h

Engine

Motor/engine manufacturer
Briggs & Stratton
Engine name
Intek
Cylinders
1
Generator
5&3 A
Power/fuel type
Gasoline
Fuel tank volume (with reserve)
5.7 l
Oil filter
Yes
Net power at preset rpm Energy
8.4 kW
Net power at preset rpm
2600 rpm
Exhaust emissions (CO2 EU V)
794.21 g/kWh

Equipment

Seat material
Vinyl
Front-End Protection
Optional
Hour meter type
Digital with pre-programmed service intervals
Seat back height
Medium 13″
Steering wheel type
Standard
Collector
Available as accessory
Deflector
Included
BioClip® kit/plate
Available as accessory

Sound and Noise

Sound power level, guaranteed (LWA)
100 dB(A)
Sound power level, measured
99 dB(A)
Sound pressure level at operators ear
85 dB(A)

Transmission

Transmission type
Hydrostatic
Transmission manufacturer
Tuff Torq

Vibration

Vibration level seat
0.12 m/s²
Vibration level steering wheel
2.05 m/s²
