MSI MAG Z390 TOMAHAWK

Motherboard MSI MAG Z390 TOMAHAWK

Download  User Guide Motherboard MSI MAG Z390 TOMAHAWK
in PDF format: MAG_Z390_TOMAHAWK_EN

Military style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector

• Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
• Supports DDR4 Memory, up to 4400(OC) MHz

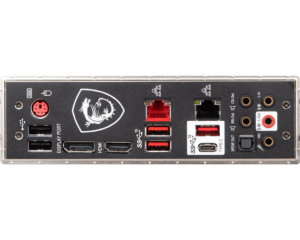

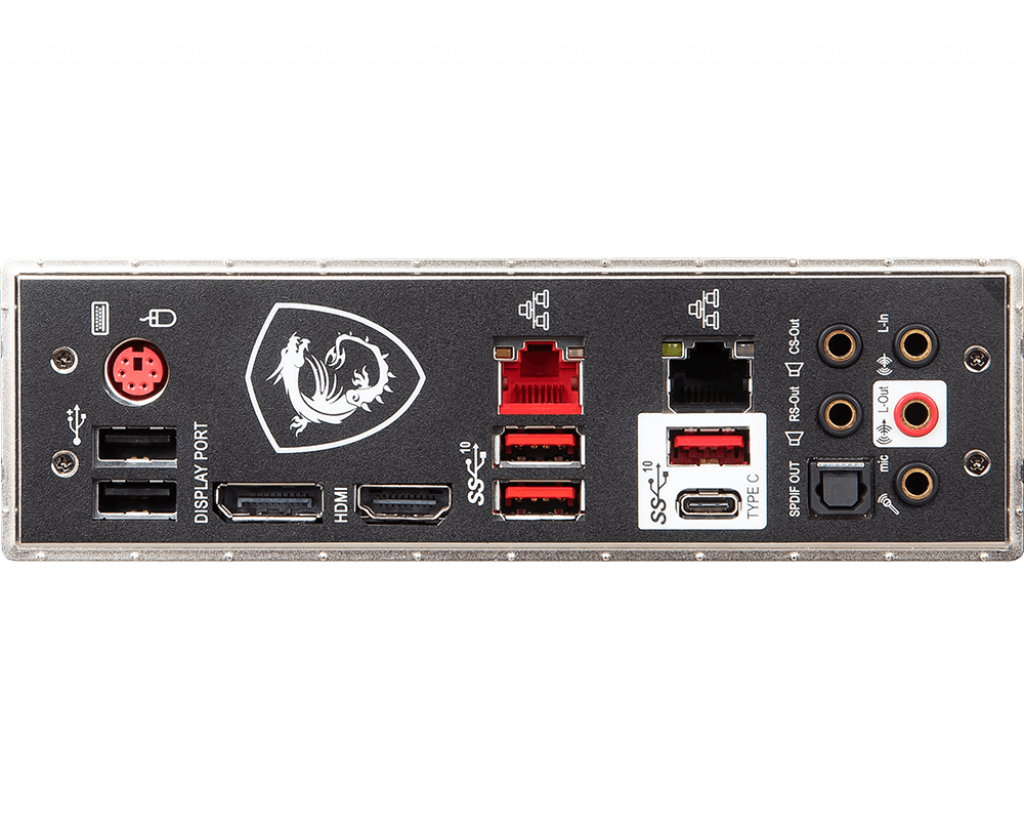

• Integrated I/O design: Pre-installed I/O Shielding for convenient installation. Extended Heatsink Design ensures even high-end processors to run in full speed.
• Premium Network Connection: Dual Intel LAN for both intranet and internet, Intel CNVi Ready
• Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Intel Turbo USB 3.1 GEN2
• Set Core Power Free: Core Boost, 8+4 pin CPU power connector, DDR4 Boost
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

• CPU (Max Support): i9
• Chipset: Intel® Z390 Chipset
• DDR4 Memory: 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 64
• PCI-Ex16: 3
• PCI-E Gen: Gen3
• PCI-Ex1: 2
• SATAIII: 6
• M.2 port: 2
• Serial ports(Front): 1
• USB 2.0 ports (Front): 4
• RAID: 0/1/5/10
• USB 3.1 ports(Front)
• LAN: 1x Intel® I219-V Gigabit LAN controller, 1x Intel® I211-AT Gigabit LAN controller
• TPM: 1
• USB 2.0 ports (Rear): 2
• Audio ports (Rear): Realtek® ALC892 Codec
• USB 3.1 ports (Rear): 4(Gen2, Type 3A+1C)
• Display Port: 1
• HDMI: 1
• DirectX: 12
• Form Factor: ATX
• CrossFire: Y
• Operating System: Support for Windows® 10 64-bit
