Samsung Galaxy Note20 & 20 Ultra 5G

  • by
Galaxy Note 20

One of the first to merge a pen with a phone, Galaxy Note puts a whole new world in your pocket. As we face a new normal, life demands a new kind of device. This is not a smartphone as you know it. This is a computer in your pocket. This is next-level gaming on mobile. This is a pro-grade 8K camera and editing suite.

Galaxy Note 20

Galaxy Note 20

Download  User  manual  Galaxy Note20 & 20 Ultra 5G
in PDF format: Galaxy_Note_20_EN



Specification 20 Ultra 5G

Processor

  • CPU Speed
    2.73GHz, 2.5GHz, 2GHz
  • CPU Type
    Octa-Core

Display

  • Size (Main_Display)
    174.5mm (6.9″ full rectangle) / 173.3mm (6.8″ rounded corners)
  • Resolution (Main Display)
    3088 x 1440 (Quad HD+)
  • Technology (Main Display)
    Dynamic AMOLED 2X
  • Color Depth (Main Display)
    16M

S Pen Support

  • Yes (Gesture/Remote Control)

Camera

  • Rear Camera – Resolution (Multiple)
    108.0 MP + 12.0 MP + 12.0 MP
  • Rear Camera – F Number (Multiple)
    F1.8 , F2.2 , F3.0
  • Rear Camera – Auto Focus
    Yes
  • Rear Camera – OIS
    Yes

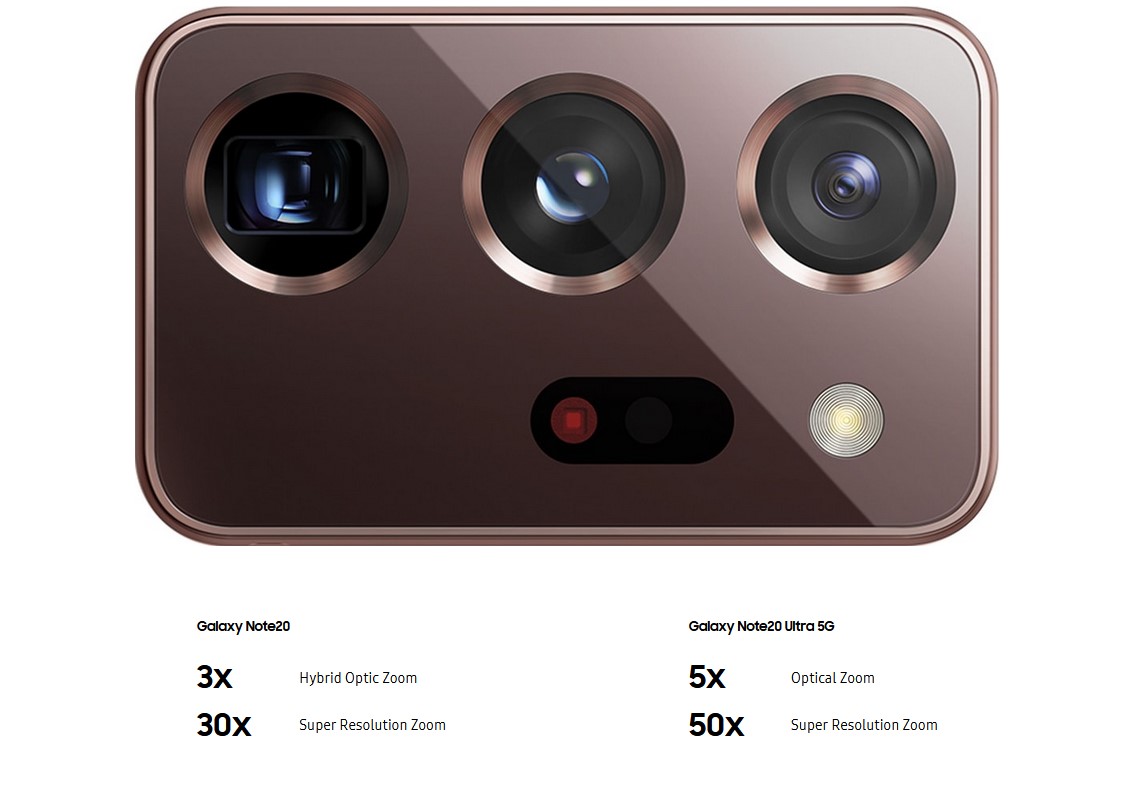

  • Rear Camera – Zoom
    Optical Zoom at 5x , Digital Zoom up to 50x
  • Front Camera – Resolution
    10.0 MP
  • Front Camera – F Number
    F2.2
  • Front Camera – Auto Focus
    Yes
  • Rear Camera – Flash
    Yes
  • Rear Camera – Laser AF Sensor
    Yes
  • Video Recording Resolution
    UHD 8K (7680 x 4320)@24fps
  • Slow Motion
    960fps @HD, 240fps @FHD

Memory

  • RAM_Size (GB)
    12
  • ROM Size (GB)
    512
  • Available Memory (GB)*
    458.8
  • External Memory Support
    MicroSD (Up to 1TB)

Network/Bearer

  • Number of SIM
    Dual-SIM
  • SIM size
    Nano-SIM (4FF), Embedded-SIM
  • SIM Slot Type
    SIM 1 + Hybrid (SIM or MicroSD) or Embedded SIM
  • Infra
    2G GSM, 3G WCDMA, 4G LTE FDD, 4G LTE TDD, 5G Sub6 FDD, 5G Sub6 TDD
  • 2G GSM
    GSM850, GSM900, DCS1800, PCS1900
  • 3G UMTS
    B1(2100), B2(1900), B4(AWS), B5(850), B8(900)
  • 4G FDD LTE
    B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B12(700), B13(700), B17(700), B18(800), B19(800), B20(800), B25(1900), B26(850), B28(700), B32(1500), B66(AWS-3)
  • 4G TDD LTE
    B38(2600), B39(1900), B40(2300), B41(2500)
  • 5G FDD Sub6
    N1(2100), N3(1800), N5(850), N7(2600), N8(900), N28(700)
  • 5G TDD Sub6
    N40(2300), N77(3700), N78(3500)

Connectivity

  • USB Interface
    USB Type-C
  • USB Version
    USB 3.2 Gen 1
  • Location Technology
    GPS, Glonass, Beidou, Galileo
  • Earjack
    USB Type-C
  • MHL
    No
  • Wi-Fi
    802.11 a/b/g/n/ac/ax 2.4G+5GHz, HE80, MIMO, 1024-QAM
  • Wi-Fi Direct
    Yes
  • Bluetooth Version
    Bluetooth v5.0
  • NFC
    Yes
  • UWB (Ultra-Wideband)
    Yes
  • PC Sync.
    Smart Switch (PC version)

OS

  • Android

General Information

  • Form Factor
    Touchscreen Bar

Sensors

  • Accelerometer, Barometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, Light Sensor, Proximity Sensor

Physical specification

  • Dimension (HxWxD, mm)
    164.8 x 77.2 x 8.1
  • Weight (g)
    208

Battery

  • Internet Usage Time(LTE) (Hours)
    Up to 15
  • Internet Usage Time(Wi-Fi) (Hours)
    Up to 16
  • Video Playback Time (Hours, Wireless)
    Up to 19
  • Battery Capacity (mAh, Typical)
    4500
  • Removable
    No
  • Audio Playback Time (Hours, Wireless)
    Up to 75
  • Talk Time (4G LTE) (Hours)
    Up to 24

Audio and Video

  • Stereo Support
    Yes
  • Video Playing Format
    MP4, M4V, 3GP, 3G2, WMV, ASF, AVI, FLV, MKV, WEBM
  • Video Playing Resolution
    UHD 8K (7680 x 4320)@30fps
  • Audio Playing Format
    MP3, M4A, 3GA, AAC, OGG, OGA, WAV, WMA, AMR, AWB, FLAC, MID, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA, DFF, DSF, APE

Services and Applications

  • Gear Support
    Galaxy Buds Live, Galaxy Buds+, Galaxy Buds, Galaxy Fit e, Galaxy Fit, Galaxy Watch3, Galaxy Watch, Galaxy Watch Active2, Galaxy Watch Active, Gear Fit2 Pro, Gear Fit2, Gear Sport, Gear S3, Gear S2, Gear IconX, Gear IconX (2018)
  • Samsung DeX Support
    Yes
  • S-Voice
    No
  • Mobile TV
    No
