Xiaomi 11T Pro Quick Start Guide

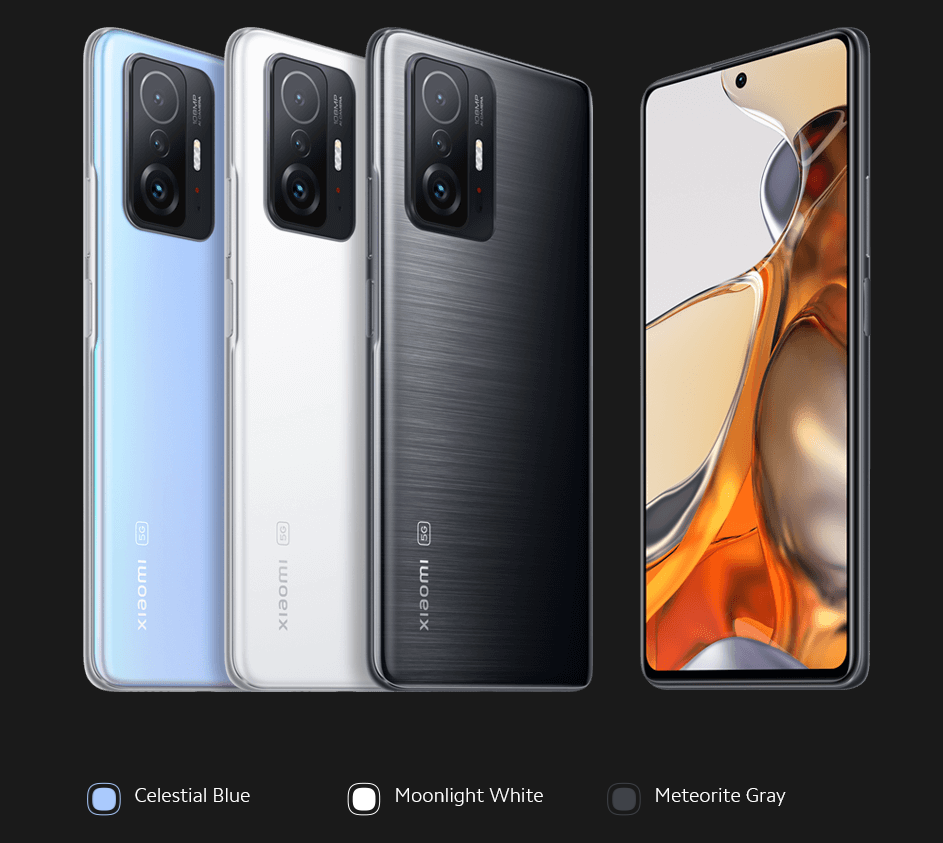

Xiaomi 11T Pro colors

108MP pro-grade camera · 120W Xiaomi HyperCharge 120Hz AMOLED, Dolby Vision® supported · Flagship Qualcomm® Snapdragon™ 888

Xiaomi 11T Pro
Xiaomi 11T Pro



Download Xiaomi 11T user guide in PDF format: Xiaomi-11T-Pro-user_guide



Storage & RAM

8GB+128GB | 8GB+256GB | 12GB+256GBLPDDR5 RAM + UFS 3.1 storage*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed on the device.

Dimensions

Height: 164.1mmWidth: 76.9mmThickness: 8.8mmWeight: 204g*Data provided by internal laboratories. Industry measurment methods may vary, and therefore actual results may differ.

Processor

Qualcomm®️ Snapdragon 8885nm power-efficient manufacturing processKryo 680 CPU, up to 2.84GHz, with ARM Cortex-X1 technologyGPU: Qualcomm® Adreno™ 660 GPUAI: 6th Gen AI EngineSnapdragon X60 5G modem

Display

6.67″ AMOLED DotDisplay2400 x 1080Aspect ratio: 20:9Dolby Vision® SupportRefresh rate: 120HzTouch sampling rate: up to 480HzSupports MEMC (Transform videos from 24fps to 48fps, 25fps to 50fps, 30fps to 60fps)Over 1 billion coloursSupports P3 wide colourContrast ratio: 5,000,000 : 1Brightness: HBM 800 nits (typ), 1000 nits peak brightness (typ)HDR10+Corning®️ Gorilla®️ Glass Victus™Reading mode 3.0Sunlight mode 3.0DisplayMate A+

Rear Camera

108MP+8MP+5MP triple camera108MP wide angle camera0.7μm pixel size, 2.1μm 9-in-1 Super Pixelf/1.758MP ultra-wide angle camera120° FOVf/2.25MP telemacro cameraf/2.4AF (3cm-7cm)Rear camera photography featuresNight modeAI Night modeAI Erase 2.0Long exposure mode with six effects (Moving crowd, Neon trails, Oil painting, Light painting, Starry sky, Star trails)Photo clones108MP modeDocument mode 2.0Google LensRear camera video featuresAudio zoom8K VideoOne-click AI cinemaHDR10+ filmingVideo pro modeSlow motion video support for 1080 at 120fps, 240fps, 960fpsRear camera video recording8K 7680×4320 at 30fps4K 3840×2160 at 60fps4K 3840×2160 at 30fps1080p 1920×1080 at 60fps1080p 1920×1080 at 30fps720p 1280×720 at 30fps

Front Camera

16MP in-display selfie cameraf/2.45Front camera photography featuresSelfie night modeFront camera video recording1080p 1920×1080 at 60fps1080p 1920×1080 at 30fps720p 1280×720 at 30fps

Battery & Charging

5000mAh (typ) battery*120W Xiaomi HyperCharge*Inbox 120W wired chargerWired: 17mins to 100%*“*Typical capacity equivalent to a 5000mAh battery. The battery is split into a dual 2500mAh cell structure. *Maximum output power will be 120W with 220~240V input; Maximum output power will be 96W with 100~120V input. Maximum output power may not be 120W based on different voltage inputs in some regions. *Charging data tested in Xiaomi Internal Labs from 2% – 100%, actual results may vary.”

Cooling system

LiquidCool technology
Security & Authentication
Arc side fingerprint sensor

NFC

Yes
Network & Connectivity
Dual SIM*Network bands:Supports 5G* / 4G / 3G/ 2G5G: Supports NSA + SA5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n784G: LTE FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/26/28/32/664G: LTE TDD: B38/40/41/423G: WCDMA: B1/2/4/5/6/8/192G: GSM: 850 900 1800 1900 MHz*Dual SIM availability may vary by region. *5G connectivity may vary based on regional availability and local operator support.Wireless NetworksWi-Fi 6

Vibration motor

X-axis linear vibration motor8x9mm

Navigation & Positioning

GPS: L1+L5Galileo: E1+E5a | GLONASS: G1 | BeidouA-GPS supplementary positioning | Electronic compass | Wireless network | Data network

Audio

Dual dedicated speakersSOUND BY Harman KardonDolby Atmos® supportHi-Res Audio certification

Video

Supports HDR10+ display when playing HDR10+ video content* *Content and application need to be supported by HDR10 and HDR10+

Sensors

Proximity sensor | Ambient light sensor | Accelerometer | Gyroscope | Electronic compass | Linear motor | IR blaster | Barometer | Colour temperature sensor

Operating System

MIUI 12.5, android 11

Package Contents

Xiaomi 11T Pro/Adapter/USB Type-C Cable/SIM Eject Tool/Protective Case/Quick Start Guide/Warranty Card
Xiaomi 11T Pro colors
Xiaomi 11T Pro colors
