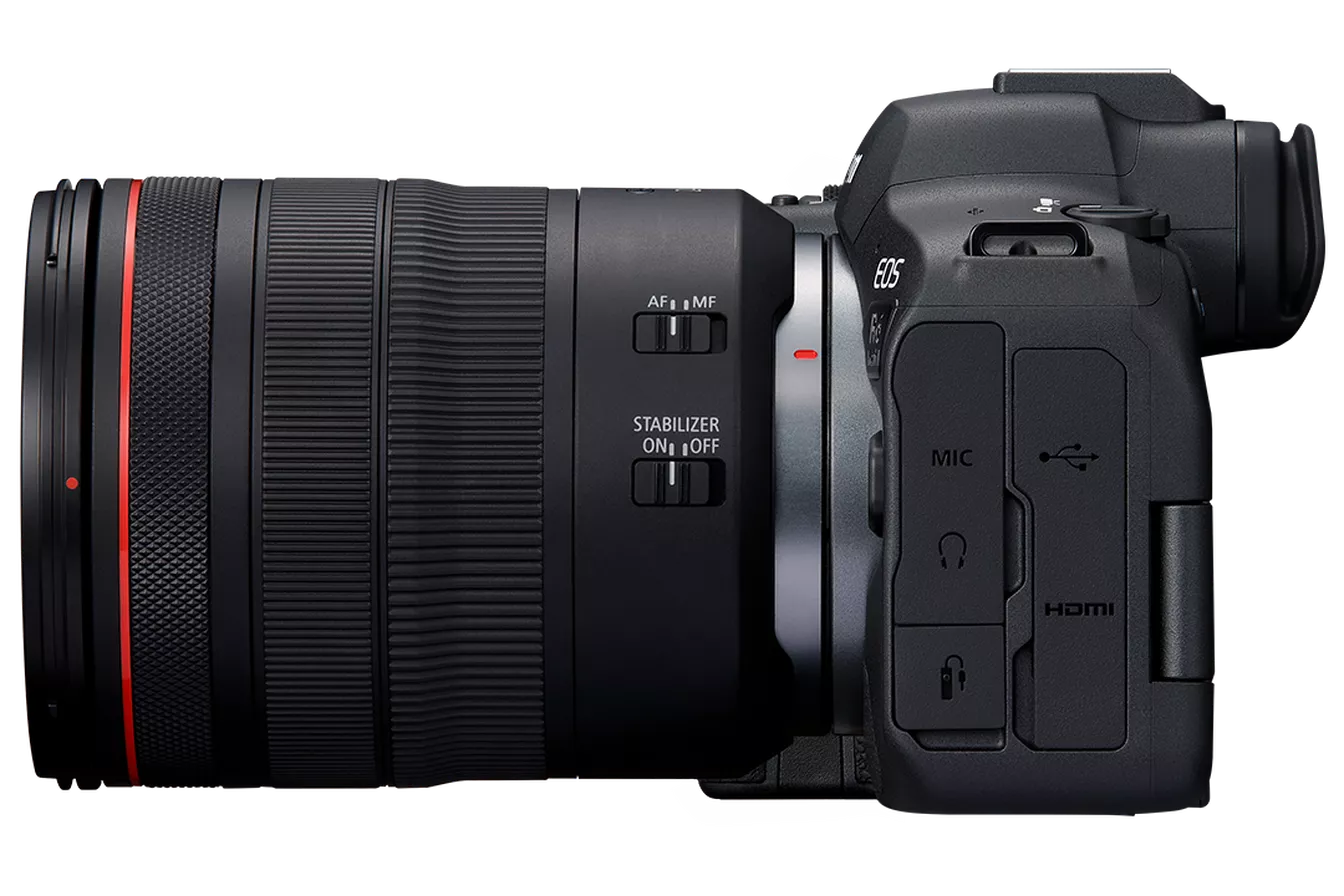

Canon EOS R6 Mark II

R6 Mark II

Stills or video, action or portrait – the EOS R6 Mark II’s blend of performance and image quality lets your creativity thrive.

Canon EOS R6 Mark II
Canon EOS R6 Mark II

Download user manual EOS R6 Mark II in PDF format: EOS_R6_Mark_II

Be creative without compromise. The EOS R6 Mark II’s breakneck speed, class-leading performance and professional filmmaking features let you master your craft – however you like to shoot.

Capture fleeting moments at up to 40fps with sensational image quality, even in near-darkness. AI-based, deep-learning AF locks on to fast-moving subjects wherever they are in the frame.

Full-width oversampled 4K 60p footage looks simply superb. Intuitive features – such as intelligent AF and a powerful Image Stabilizer – make professional results easy to achieve.



Specifications in detail

Image Sensor

  • Type
    35.9 x 23.9 mm CMOS
  • Effective Pixels
    Approx. 24.2megapixels
  • Total Pixels
    Approx. 25.6 megapixels
  • Aspect Ratio
    3:2
  • Low-Pass Filter
    Built-in/Fixed
  • Sensor Cleaning
    EOS integrated cleaning system
  • Colour Filter Type
    Primary Colour
  • Sensor Shift-IS
    Yes, up to 8-Stops advantage depending on the lens used 1

Image Processor

  • Type
    DIGIC X

Lens

  • Lens Mount
    RF (EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R) EF-M lenses are not compatible
  • Focal Length
    Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with RF-S and EF-S

Focusing

  • Type
    Dual Pixel CMOS AF II
  • AF System / Points
    100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes 100% horizontal and 90% vertical with manual selection and large zone modes2
  • AF Working Range
    EV -6.5 – 21 (at 23°C & ISO100)
  • AF Modes
    One Shot, Servo AF, AI Focus AF
  • AF Point Selection
    Automatic selection: 1053 Available AF areas when automatically selected,
    Manual selection: 1-point AF (AF frame size can be changed) 4897AF positions available stills ( 4067 Movies)
    Manual selection: AF point Expansion 4 points (up, down, left, right)
    Manual selection: AF point Expansion surrounding
    Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones)
  • AF Tracking
    Humans, Animals (Dogs, Cats, Birds and horses) or Vehicles (Racing cars or Motor bikes, Aircraft and Trains)
  • AF Lock
    Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
  • AF Assist Beam
    Emitted by built in LED or optional dedicated Speedlite (flash)
  • Manual Focus
    Selected on lens

Exposure Control

  • Metering Modes
    Real-time with image sensor, 384-zone metering.
    (1) Evaluative metering (linked to All AF points)
    (2) Partial metering (approx. 5.9% of viewfinder at centre)
    (3) Spot metering: Centre spot metering (approx. 3% viewfinder at centre)- AF point-linked spot metering not provided
    (4) Centre weighted average metering
  • Metering Brightness Range
    EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
  • AE Lock
    Auto: AE lock takes effect when focus is achieved
    Manual: By AE lock button in P, Av, Fv, Tv and M modes
  • Exposure Compensation
    +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
  • AEB
    +/-3 EV in 1/3 or 1/2 stop increments
  • Anti-flicker Shooting
    Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter
    High Frequency anti flicker shooting for M and TV modes
  • ISO Sensitivity

  • Auto 100-102400 (in 1/3-stop or 1 stop increments) ISO can be expanded to L:50, H:204,801

Shutter

  • Type
    Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
  • Speed
    Mechanical: 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb
    Electronic: 30-1/16000 (1/2 or 1/3 stop increments up to 1/8000 then 1 stop to 1/16000) (Total shutter speed range. Available range varies by shooting mode)4
  • Shutter Release
    Soft touch electromagnetic release

White Balance

  • Type
    Auto white balance with the imaging sensor
  • Settings
    AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
    White balance compensation:
    1. Blue/Amber +/-10
    2. Magenta/Green +/-11
  • Custom White Balance
    Yes, 1 setting can be registered – From image or Live View
  • WB Bracketing
    +/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release
    Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

  • Type
    0.5-inch OLED colour EVF
  • Dot Count
    3.69 Million dots
  • Coverage (Vertical/Horizontal)
    Approx. 100%
  • Magnification
    Approx. 0.76x
  • Eyepoint
    Approx. 23mm (from eyepiece lens centre)
  • Dioptre Correction
    -4 to +2 m-1 (dioptre)
  • Display Performance
    Power saving: 59.94 fps Smooth 119.98 fps , supress low frame rate 60 -119.8fps6
  • Viewfinder Information
    Shutter speed, Aperture, ISO speed, AF point information, Exposure level indicator, Number of remaining exposures, Exposure compensation, Battery level, Electronic shutter, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Self-timer shooting mode, Maximum burst, AF method, Subject to Track setting, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still/video cropping, Shooting mode, Aspect ratio, Scene icons Auto Lighting Optimizer, AE lock Picture Style, Flash-ready, White balance, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi on/off,  Histogram, Electronic level, Focus distance scale in manual focus, SA control ring setting, IS system.
    Audio Level – Manual (video), recording time remaining (video), headphone level (video), Video recording resolution frame rate and compression (video) Rec indicator (video), Overheat indicator ( Video)
  • Depth of Field Preview
    Yes, via customised button or with “Exposure +DOP” ( up to F8)
  • Eyepiece Shutter
    N/A

LCD Monitor

  • Type
    7.5cm (3.0″) Clear View LCD II, approx. 1.62 million dots
  • Coverage
    Approx. 100%
  • Viewing Angle (Horizontally/Vertically)
    Approx. 170° vertically and horizontally
  • Coating
    Anti-smudge.
  • Brightness Adjustment
    Manual: Adjustable to one of seven levels Colour Tone Adjustment: 4 settings
  • Touch Screen Operations
    Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
  • Display Options
    (1) Basic Camera settings
    (2) Advance Camera settings
    (3) Camera settings plus histogram and dual level display
    (4) No info
    (5) Quick Control Screen

Flash

  • Modes
    E-TTL II Auto Flash, Metered Manual
  • X-Sync
    1/200sec mechanical shutter / 1/250th electronic 1st curtain
  • Flash Exposure Compensation
    +/- 3EV in 1/3 or 1/2 stop increments with EX series Speedlite flashes
  • Flash Exposure Bracketing
    Yes, with compatible External Flash
  • Flash Exposure Lock
    Yes
  • Second Curtain Synchronisation
    Yes via Speedlite
  • HotShoe / PC Terminal
    Yes/No
  • External Flash Compatibility
    E-TTL II with EX / EL series Speedlite, wireless multi-flash support
  • External Flash Control
    via camera menu screen

Shooting

  • Modes
    Stills; Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
    Movie: Auto Exposure, TV, AV Manual and Custom (x3)
  • Picture Styles
    Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
  • Colour Space
    sRGB and Adobe RGB
  • Image Processing
    Highlight Tone Priority (2 settings)
    Auto Lighting Optimizer (3 settings)
    Long exposure noise reduction
    Clarity
    High ISO speed noise reduction (4 settings) (stills and video)
    Lens optical correction
    – Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)
    Diffraction correction,
    Digital Lens Optimizer (during/after still photo shooting only)
    Focus Bracketing including image compositing
    Resize to M, S1, S2
    Cropping of images (JPEG/HEIF)
    – Aspect ratios 3:2, 4:3, 16:9, 1:1 x1.6crop
    – Switch between vertical and horizontal cropping orientation
    – Image straightening
    – Cropping frame can be moved using touch screen operation
    RAW image processing
    Dual Pixel RAW – Portrait Relighting, Background Clarity ( in camera)
    Raw Cloud processing
    Multiple exposure
    HDR – with moving subject supression
    HEIF to Jpeg conversion (single or batch)
  • Drive Modes
    Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote)
  • Continuous Shooting
    Max. Approx. 12fps. with Mechanical shutter, speed maintained for 1000+ JPEG or 110 RAW 1000 CRAW images.Max. Approx. 40fps. with Electronic shutter7,8 speed maintained for 190 JPEG or 75 RAW, 140 CRAW images
    RAW Burst 30fps with 0.3 or  0.5 seconds pre record for max approx 191 frames
  • Interval Timer
    Built in

File Type

  • Still Image Type
    JPEG: 2 compression options
    RAW: RAW, C-RAW 14 bit (14-bit with Mechanical shutter and Electronic 1st Curtain, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition)
    HEIF: 10bit HEIF is available in HDR shooting with [HDR PQ] set to [Enable]
    Complies with Exif 2.31 and Design rule for Camera File system 2.0
    Complies with Digital Print Order Format [DPOF] Version 1.2
  • RAW+JPEG Simultaneous Recording
    Yes, any combination of RAW + JPEG or RAW + HEIF possible
  • Image Size
    3:2 ratio (L, RAW, C-RAW) 6000 x 4000, (M) 3984 x 2656, (S1) 2976x 11984, (S2) 2400 x 1600
    1.6x (crop) (L) 3744 x 2496, (S2) 2400 x 1600
    4:3 ratio (L) 5328 x 4000, (M) 3552 x2664 (S1) 2656 x 1992 (S2) 2112 x 1600
    16:9 ratio (L) 6000 x 3368, (M) 3984 x 2240, (S1) 2976 x 1680, (S2) 2400 x 1344
    1:1 ratio (L) 4000 x 400, (M) 2656x 2656, (S1) 1984 x 1984, (S2) 1600 x 1600
  • Folders
    New folders can be manually created, named and selected
  • File Numbering
    File Numbering
    (1) Consecutive numbering
    (2) Auto reset
    (3) Manual reset
  • File Naming
    3 User presets

EOS Movie

  • Movie Type
    MP4 Video: 4K UHD, Full HD (16:9)9 Audio: Linear PCM / AAC
  • Movie Size
    4K UHD (16:9) 3840 x 2160 (59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
    4K UHD Timelapse (16:9) 3840 x 2160 (29.97, 25fps) intra frame (All-I)
    Full HD (16:9) 1920 x 1080 (179.82, 150, 119.88, 100, 59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
    Full HD Timelapse (16:9) 1920 x 1080 (29.97, 25fps) intra frame (All-I), Full HD HDR (16:9) 1920 x 1080 (29.97, 25fps) intra frame (All-I)
  • Colour Sampling (Internal Recording)
    4K/ Full HD – YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
  • Canon Log
    Yes, Canon Log 3
  • Movie Length
    Max duration 6 hours (excluding High Frame Rate movies, and power and storage limitations ).
    Upto 5 seconds pre record possible.
    No 4GB file limit with exFAT formatted SD card.
  • High Frame Rate Movie
    Full HD at 180fps, 150fps, 100fps or 119.9fps
    Recorded as 1/6-speed slow motion movie
    Single scene maximum recording up to approx 1 hour 180/150fps 1hour 30mins 120/100fps
  • Frame Grab
    8.3-megapixel JPEG/HEIF still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)
  • Bitrate / Mbps
    MP4 H.264 Canon Log Off
    4K (59.94p/50.00p): IPB Approx. 230 Mbps
    4K (59.94p/50.00p): IPB (Light ) Approx. 120 Mbps
    4K (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps
    4K (29.97p/25.00p/23.98p): IPB (Light ) Approx. 60 Mbps
    4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps
    Full HD (179.82p/150.00p): IPB Approx. 180 Mbps
    Full HD (179.82p/150.00p): IPB (Light) Approx. 105Mbps
    Full HD (119.88p/100.00p): IPB Approx. 120 Mbps
    Full HD (119.88p/100.00p): IPB (Light) Approx. 70 Mbps
    Full HD (59.94p/50.00p): IPB Approx. 60 Mbps
    Full HD (59.94p/50.00p): IPB (Light) Approx. 35 Mbps
    Full HD (29.94p/25.00p/23.93p): IPB Approx. 30 Mbps
    Full HD (29.94p/25.00p): IPB (Light) Approx. 12 Mbps
    Full HD Timelapse (29.97, 25fps) All-I Approx. 90Mbps
    Full HDR Movies (29.97, 25fps) IPB Approx. 30 Mbps
    MP4 H.265 Canon Log / HDR PQ: On
    4K (59.94p/50.00p): IPB Approx. 340 Mbps
    4K (59.94p/50.00p): IPB (Light) Approx. 170 Mbps
    4K (29.97p/25.00p/23.98p): IPB Approx. 170 Mbps
    4K (29.97p/25.00p/23.98p): IPB (Light) Approx. 85 Mbps
    4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps
    Full HD (179.82p/150.00p): IPB Approx. 270 Mbps
    Full HD (179.82p/150.00p): IPB (Light) Approx. 150 Mbps
    Full HD (119.88p/100.00p): IPB Approx. 180 Mbps
    Full HD (119.88p/100.00p): IPB (Light) Approx. 100 Mbps
    Full HD (59.94p/50.00p): IPB Approx. 90 Mbps
    Full HD (59.94p/50.00p): IPB (Light) Approx. 50 Mbps
    Full HD (29.94p/25.00p/23.93p): IPB Approx. 45 Mbps
    Full HD (29.94p/25.00p): IPB (Light) Approx. 28 Mbps
    Full HD Timelapse (29.97, 25fps) All-I Approx. 135Mbps
  • Dual Card Recording
    yes
  • Microphone
    Built-in stereo microphone (48 Khz, 16-bit x 2 channels), external mic or Multi-Function shoe including XLR via Tascam CAXLR2dC
  • HDMI Display
    Output to external monitor only (output of images and shooting information, images are recorded to the card)
  • HDMI Output
    Camera screen and External Monitor output (no recording to the card, camera screen shows images with shooting information)
    4K (UHD) 59.94p / 29.97p / 23.98p,
    Full HD 59.94p / 59.94i, 50.00p / 50.00i
    480p 59.94p
    576p 50p
    Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible
    6k upto 60p RAW to Atomos Ninja V+ recorded as ProRes RAW or 3.7k RAW with crop
  • Focusing
    Dual Pixel CMOS AF with Eye/Face Detection, Face only and Animal Tracking AF, Movie Servo AF
    Manual Focus (Peaking and Focus Guide available)
  • ISO
    Auto: 100-6400, H: 204800
    Manual: 100-25600, H: 204801

Other Features

  • Custom Functions
    22 Custom Functions
  • Metadata Tag
    User copyright information (can be set in camera)
    Image rating (0-5 stars)
    IPTC data (registered with EOS Utility or Mobile File Transfer app)
    Image transfer with caption (Caption registered with EOS Utility)
  • LCD Panel / Illumination
    No/No
  • Water/Dust Resistance
    Yes
  • Voice Memo
    No
  • Intelligent Orientation Sensor
    Yes
  • Playback Zoom
    1.5x – 10x in 15 steps
  • Display Formats
    (1) Single image
    (2) Single image with information (2 levels)
    Basic – Shooting information (shutter speed, aperture, ISO and Image quality)
    Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information
    (3) 4 image index
    (4) 9 image index
    (5) 36 image index
    (6) 100 image index
    (7) Jump Display (1, 10 or 100 images, start of burst sequence, Date, Folder, Movies, Stills, Protected images, Rating, )
    (8) Movie edit
    (9) RAW processing
    (10) Rating
  • SlideShow
    Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
    Playback time: 1/2/3/5/10 or 20 seconds
    Repeat: On/Off
  • Histogram
    Brightness: Yes
    RGB: Yes
  • Highlight Alert
    Yes
  • Image Erase
    Single image, select range, Selected images, Burst sequence Folder, Card
  • Image Erase Protection
    Erase protection of Single image, Folder or Card all found images (only during image search)
  • Self Timer
    4 or 10 sec.
  • Menu Categories
    (1) Shooting menu
    (2) AF Menu
    (3) Playback menu
    (4) Network
    (5) Setup menu
    (6) Custom Functions menu
    (7) My Menu
  • Menu Languages
    30 Languages
    English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
  • Firmware Update
    Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter) via card or Camera connect app

Interface

  • Computer
    SuperSpeed USB 3.2 Gen 2 USB C connector UVC/UAC support  Windows / Mac OS   compatible with  Zoom / Skype / Teams / Meet / Webex
  • Wi-Fi
    Wireless LAN (IEEE802.11AC/ab/g/n) (5/ 2.4 GHz), with Bluetooth v5.0 support  Features supported – EOS Utility, Smartphone, Upload to Web17
  • Other
    HDMI micro out (Type D), External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack), E3-type terminal (remote control terminal), Multi-Function shoe

Direct Print

  • Canon Printers
    Direct Print
  • PictBridge
    Not supported

Storage

  • Type
    2x SD/SDHC/SDXC and UHS-II

Supported Operating System

  • PC
    Windows 8.1 and Windows 10, Windows 11 (tablet mode not supported)
  • Macintosh
    OS X v10.12, 10.13, 10.14,10.15, OS 11.x

Software

  • Image Processing
    Digital Photo Professional 4.17. or later, Digital Photo Professional Express mobile app ( iOS only) (RAW Image Processing not DUAL PIXEL RAW on DPP Express moible)
  • Other
    EOS Utility 3.16 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera Connect V3.0 app, Mobile File Transfer app and image.canon app (iOS/Android)

Power Source

  • Batteries
    Rechargeable Li-ion Battery LP-E6NH (supplied)/LP-E6N
  • Battery Life
    With LCD Approx. 760 shots (at 23°C)
    With Viewfinder Approx. 450 shots (at 23°C)
  • Battery Indicator
    7 levels + percentage
  • Power Saving
    Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
  • Power Supply & Battery Chargers
    Battery charger LC-E6E (supplied), AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6, PD-E1 USB power adapter

Accessories

  • Wireless File Transmitter
    N/A
  • Cases / Straps
    N/A
  • Lenses
    All RF lenses (EF & EF-S via Lens adapters)
  • Lens Adapters
    Mount Adapter EF-EOS R
    Control Ring Mount Adapter EF-EOS R
    Drop-In Filter Mount Adapter EF-EOS R
  • Flash
    Canon Speedlite (EL-1, SPEEDLITE EL-5, EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT,Speedlite Transmitter ST-E3-RT V2, Speedlite Transmitter ST-E10)
  • Remote Controller / Switch
    Remote control with E3 type socket and Wireless Remote Control BR-E1
  • Other
    BG-R10 battery grip, GP-E2 GPS receiver (digital compass not supported), Stereo Microphone DM-E1 / DM-E100, Multi-Function Shoe Adapter AD-E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D, Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Tascam CA-XLR2d-C XLR microphone adapter

Physical Specifications

  • Body Materials
    Magnesium Alloy chassis, outer panels are polycarbonate resin with glass fiber
  • Operating Environment
    2 – 40 °C, 85% or less humidity
  • Dimensions (W x H x D)
    138.4 × 98.4 × 88.4 mm
  • Weight (Body Only)
    Approx. 588 g (670 g with card and battery)



Canon Lenses

2 thoughts on “Canon EOS R6 Mark II”

Leave a Reply

Your email address will not be published. Required fields are marked *
