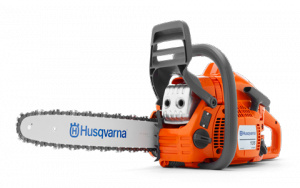

Chainsaw Husqvarna 135

  • by
Husqvarna 135

Husqvarna 135e, 135e TrioBrake

Husqvarna 135

Husqvarna 135



Download user manual Husqvarna 135 in PDF format: husqvarna135

New lightweight and efficient homeowner saw ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with fuel pump and Auto return stop switch for easier starting.



Engine specification
Cylinder displacement 40.9 cm³ / 2.5 cu.inch
Power output 1.5 kW
Maximum power speed 9000 rpm
Fuel tank volume 0.37 lit / 12.51 fl oz
Fuel consumption 652 g/kWh
Idling speed 2900 rpm
Spark plug Champion RCJ7Y, Husqvarna HQT-1, NGK BPMR7A
Electrode gap 0.5 mm / 0.02 “
Torque, max. 2 Nm/6300 rpm
Lubricants
Oil tank volume 0.25 lit / 0.5 US pint
Oil pump type Automatic
Vibration & noise data
Equivalent vibration level (ahv, eq) front / rear handle 3.9/3.8 m/s²
Sound pressure level at operators ear 102 dB(A)
Sound power level, guaranteed (LWA) 114 dB(A)
Cutting equipment
Chain pitch
3/8″ LP
Recommended bar length, min-max 35-40 cm / 14″-16″
Chain speed at max power 22.9 m/s / 75.13 fts
Chain speed at 133% of maximum engine power speed 30.5 m/s / 100.07 fts
Chain gauge 0.05 “
Overall dimensions
Weight (excl. cutting equipment) 4.4 kg / 9.7 lbs
