Home Connect: home appliances with smart connectivity for an easier everyday life.
Download Bosch SMD6ZCX60G user guide in PDF format: SMD6ZCX60G
- PerfectDry: perfect drying results using less energy – even with hard-to-dry items.
- Extra Clean Zone: extra cleaning for items in your top basket.
- Max Flex baskets: flexible and stable loading for your dishes, with superior sliding performance.
Quality and flexibility in every detail
The proper loading of all your different dishes can be challenging. The Max Flex baskets make it as easy as it gets with a more stable lower basket and flip tines to easily place large items. Further, newly designed glass shelves, anti sliding strips and cup shelves prevent your load from sliding. For smaller kitchens items the Extra Space 3rd basket or a cutlery drawer at the top are available. Max Flex baskets opens up for stable loading and flexibilty for all your dishes.
- TimeLight: program status and remaining time clearly displayed on floor in high resolution.
Specifications
Installation type
Built-in
Installation type
Integrated
Main colour of product
N/A
Color / Material panel
Grey
Removable work top
No
Door panel options
Not possible
Variable hinge
No
Adjustable plinth
both horizontal and vertical
Energy Efficiency Class
C
Airborne acoustical noise emissions
44 dB(A) re 1 pW
Airborne acoustical noise emission class
B
The water consumption of the eco programme in liters per cycle
7.7 l
Programme duration
3:45 h
Energy Consumption for 100 cycles Eco Programme
74 kWh
Maximum number of place settings
13
List of programmes
Auto 45-65°C, Custom program, Delicate, Economy, Intensive, Quick wash 45°C, Short 60°C, Silence 50°C
Additional operational options
Extra dry, Intensive Zone, Machine Care, Remote Start, Vario Speed Plus
AquaStop
Yes
Drying system
Heat exchanger, Zeolith
3rd Rack
3rd Rack 1.1
rackmatic normal
Yes
Included accessories 2
baking-sheet spray head grey, vapor barrier plate

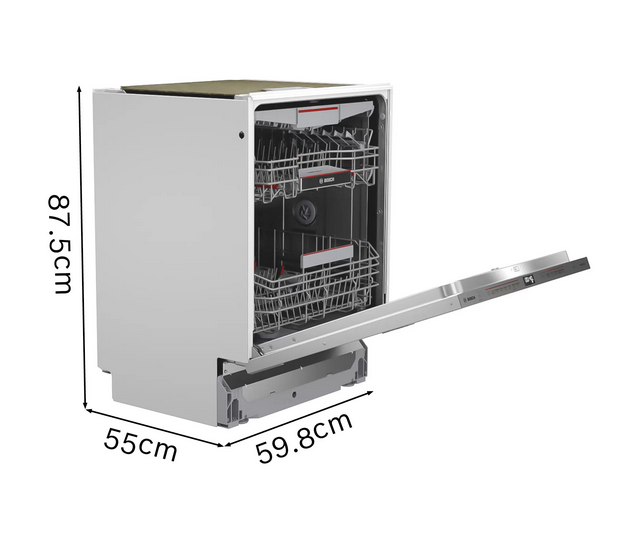

Size and weight
Dimensions of the product (HxWxD)
815 x 598 x 550 mm
Depth with open door 90 degree
1,150 mm
Maximum height for installation
875 mm
Minimum width for installation
600 mm
Maximum width for installation
600 mm
Depth for installation
550 mm
Height of removable worktop
0 mm
Net weight
42.7 kg
Size and weight
Comfort
Drying progress indicator
End of program audible, Time remaining indic. internal, water inlet
Door-opening sensor
Yes
TimeLight
Yes
sideLight
No
emotionLight
No
emotionlight pro
No
Cleaning Technology & Sensoric
Raw water valve
No
aquasensor
Yes
Water management system
Yes
Detergent detection
Yes
Connectivity
Smart Appliance
Yes
Home Connect Features
Remote Monitoring and Control
Safety
AquaStop
Yes
Child Safety
Yes
New for 2021
Performance
Energy Efficiency Class¹: C
Energy² / Water³: 74 kWh / 7.7 litres
Capacity: 13 place settings
Programme duration⁴: 3:45 (h:min)
Noise level: 44 dB(A) re 1 pW
Noise Efficiency Class: B
Noise level (silence programme): 42 dB(A) re 1 pW
Programmes / functions
8 programmes: Eco 50 °C, Auto 45-65 °C, Intensive 70 °C, Express 60 °C, Express 45 °C, Glass 40 °C, Silence 50 °C, Favourite
Default favourite programme: Pre-Rinse
4 special options: Remote Start, Extra Dry, Intensive Zone, SpeedPerfect+
Machine Care
Silence on Demand (via app)
Flexible design elements
Max Flex baskets Basket system with red coloured touchpoints
VarioDrawer – loading of cutlery on 3rd level
3 stage Rackmatic height-adjustable top basket
Smooth running wheels on upper basket
Low friction wheels on bottom basket
Anti-slip protection strips in upper basket
Rack Stopper to prevent derailing of bottom basket
2 foldable plate racks in top basket
6 foldable plate racks in bottom basket
Upper rack cup shelf
Lower rack cup shelf
Innovations and technology
Home Connect ready on WLAN
Zeolith – Energy efficient and perfect drying results
Extra Clean Zone
Heat exchanger.
DosageAssist detergent dispenser
EcoSilence BLDC drive
Automatic detergent detection
AquaMix – Glass protection system
Aqua and loading sensor
Water managment system
Design features
Touch Control (metallic)
Push button top edge controls
TimeLight – Light projection on the floor
DoorOpen Assist – perfectly designed for kitchens without handles
Acoustic end of cycle indicator, Time remaining indicator (min), water inlet indicator
Time delay (3, 6 or 24 hours)
ChildLock – double push to open
AquaStop: Bosch’s warranty in case of water damage – for the lifetime of the appliance. Please find warranty terms under https://www.bosch-home.co.uk/customer-service/care-protection-and-parts/additional-warranties
Self-cleaning filter system with 3 piece corrugated filter
Large item spray head, steam protection plate
Stainless steel interior
Dimensions (HxWxD): 81.5 x 59.8 x 55cm
