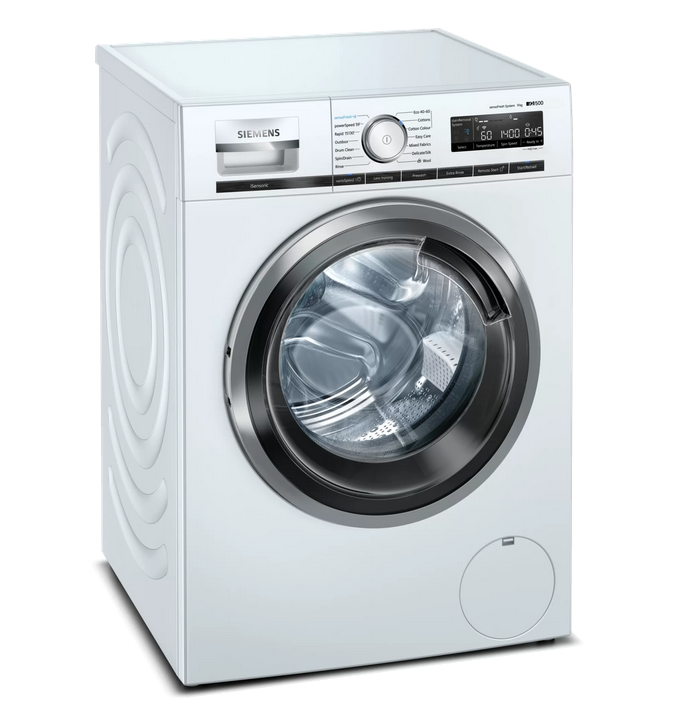

iQ500 Washing machine, front loader 9 kg 1400 rpm
Download Siemens WM14VPH4GB user guide in PDF format: WM14VPH4GB
Highlights
sensoFresh – Quick and effective odour removal without washing.
- speedPack XL – Speed up programmes, set the duration or wash in just 15 minutes.
Choose how long it takes to wash.
Speed up the washing process with the time-saving varioSpeed option or choose one of the fast programmes: 59, 30 and 15 minutes. Now your laundry can fit in around your life.
- Access and control your washing machine, no matter where you are – Home Connect App (Android and iOS)
Home Connect
The world of technological innovation constantly progresses. Step by step, more appliances become more connected and intelligent. With Wi-Fi-enabled Siemens home appliances and Home Connect, this development finally makes its way into your home. The synergy of Wi-Fi-enabled appliances, intelligent software and an intuitive app offers a wide range of options. While some ease the workload and some open up completely new possibilities, all of them make everyday life as efficient and comfortable as never before. And you can spend more time on the things you like. For a life less ordinary.
- stainRemoval system – removes four types of stubborn stain without pre-treatment.
Tackle the toughest stains.
Without the need for additives or manual pretreatment, the stainRemoval system targets four of the most common stains – wine, butter/oil, blood and grass. By adjusting water temperature, drum speed and soaking time, each type of stain is targeted effectively.
- Outstanding readability and intuitive menu navigation – LED direct touch display
Additional information
General
Design
Freestanding
Colour/material
White
List of programmes
Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Wash optimization
drain / spin, extra rinse, less ironing, mixed fabrics, On/off, Outdoor, prewash, rapid 15 minute quick wash, Ready in, single rinse, spin speed selection, stain selection, start/pause with reload function, temperature selection, varioSpeed
Noise level washing
46 dB(A) re 1 pW
Noise level spinning
70 dB(A) re 1 pW
Water protection system
Multiple water protection
Removable work top
No
Energy Efficiency Class
B
Airborne acoustical noise emissions
70 dB(A) re 1 pW
Airborne acoustical noise emission class
A
Maximum capacity in kg
9.0 kg
Energy Efficiency Index for the washing cycle
60
Washing efficiency index eco 40-60 programme
1.040
Spin-drying efficiency class of eco 40-60 programme
B
Energy consumption in kWh per kg per cycle of eco 40-60 programme
0.570 kWh
The spin speed in rpm of the eco 40-60 programme at rated capacity
1,400 rpm
Size and weight

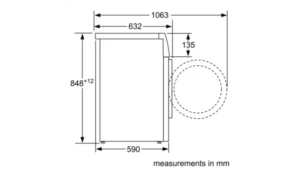

Dimensions of the product
848 x 598 x 590 mm
Depth with open door 90 degree
1,063 mm
Drum volume
65 l
Height of removable worktop
-2 mm
Height-adjustable by
1.20 cm
Weight
74.2 kg
Length of electrical supply cord
210 cm
Size and weight
Comfort
i-Dos
No
Load display with dosage recommendation
No
Reload function
Yes
Loading sensor
Yes
Degree of dirtiness recognition
No
Digital countdown indicator
Yes
Drying progress indicator
LED-display
Programme end indication
Acoustic, LED-display
Turbidity sensor
No
Water plus
No
waterPerfect
No
waterPerfect Plus
Yes
Start delay options
Continuous
Self adjusting water level to load
Yes
Interior light
Yes
varioSoft drum
No
iQdrive
Yes
Hot & cold water intake
No
Speed options
varioSpeed
Yes
super15
No
Speed programme 15/30
Yes
speedPerfect
Yes
Programmes
List of programmes
Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
sensoFresh
Yes
sensoFresh
Yes
Allergy Plus program
No
Shirts / Blouses programme
No
Delicates / silk programme
Yes
Wool programme
Yes
Down program
No
Outdoor programm
No
stainRemoval
Yes
Cold wash option
Yes
Pre-wash
available
Cottons programme
Cotton Colour, Standard cold – 90°C
Easy-care programme
Standard cold – 60°C
Temperature selection
Button
Wash optimization
drain / spin, extra rinse, less ironing, mixed fabrics, On/off, Outdoor, prewash, rapid 15 minute quick wash, Ready in, single rinse, spin speed selection, stain selection, start/pause with reload function, temperature selection, varioSpeed
Water plus
No
Connectivity
Home Connect
Yes
Home Connect Features
Energymgmt Photovoltaics, Remote Diagnostics, Remote Monitoring and Control
Safety
Balance control
Yes
Foam control
Yes
Water protection system
Multiple water protection
Child Safety
Yes
