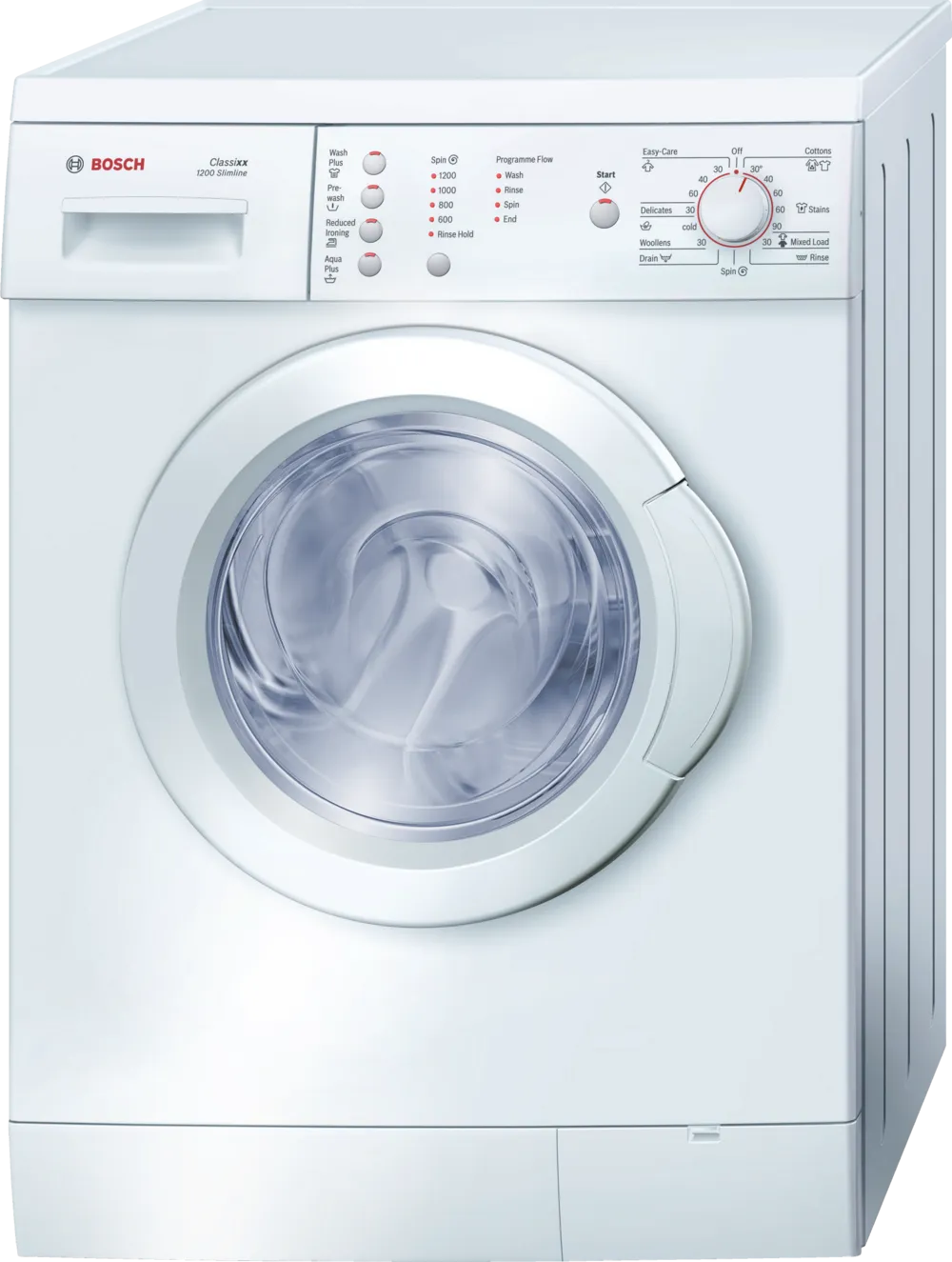

BOSCH WLX24164GB Classixx Automatic washing machine
View the user manual in PDF format: WLX24164
[pdf-embedder url=”https://www.devicemanuals.eu/wp-content/uploads/2012/03/WLX24164.pdf”]
Technical specs
| General Properties | |
|---|---|
| Product group | Washing machine |
| Brand | Bosch |
| Product name / Commercial code | WLX24164GB |
| Internal article number | WLX24164GB |
| EAN code | 4,242,002,523,408 |
| Built-in / Free-standing | Free-standing |
| Installation typology | Built-under |
| Removable top | Yes |
| Cover door / Double door | No |
| Loading type | Front |
| Door hinge | Left-hand |
| Color / Material panel | White |
| Color / Material body | White |
| Connection Rating (W) | 2300 W |
| Current (A) | 13 A |
| Voltage (V) | 220-240 V |
| Frequency (Hz) | 50 Hz |
| Approval certificates | CE |
| Length electrical supply cord (m) | 175.0 cm |
| Plug type | GB plug |
| Height of the product (mm) | 847 mm |
| Dimensions of the product (mm) | 847 x 600 x 440 mm |
| Dimensions of the packed product (HxWxD) (mm) | 875 x 650 x 510 mm |
| Wheels | No |
| Net weight (kg) | 64.00 kg |
| Gross weight (kg) | 65.00 kg |
| Washing performance class | A |
| Spin drying performance class | C |
| Maximum spin speed (rpm) | 1,200 rpm |
| Capacity cotton (Kg) | 4.5 kg |
| Noise level washing (dB(A) re 1 pW) | 58 dB (A) |
| Noise level spinning (dB(A) re 1 pW) | 76 dB (A) |
| Spin speed options | Variable |
| Skip spin | Yes |
| Wash optimization | Drain, Easy iron, Extra Rinse / Starching, higher water level, Intensive/stains, mixture 30°C, Prewash, Spinning, Spin speed reduction, Start |
| Foam control | Yes |
| Balance control | Yes |
| Water protection system | Multiple water protection |
| Separate temperature control options | No |
| Cold wash option | Yes |
| Drying progress indicator | LED |
| Digital countdown indicator | No |
| Start delay options | No delay |
| Start delay time max (h) | 0 h |
| Pre-wash | available |
| Water plus | Yes |
| Tub material | Plastic |
| Drum volume (l) | 35 l |
| Drum material | Stainless steel |
| Hot & cold water intake | No |
| Programme end indication | LED |
| Loading sensor | No |
| Porthole | Yes |
| Electronic After-sales Service | Yes |
| Height for building under | 820.00 mm |
| Height-adjustable by | 1.50 cm |
| Whites and coloureds programme | 30°C, 40°C, 60°C, 60° Stains, 90°C |
| Easy-care programme | 30°C, 40°C, 60°C |
| Turbidity sensor | No |
| Depth with door open (90°) | 83.00 cm |
| Detergent dispensing | From front |
| Appl depth incl wall distance | 44 cm |
| Temperature selection | Programme selector |
| Hand wash | Yes |
| Hot & cold water intake | No |
| Energy information | -10% |
| EAN Barcode | ‘!2E20AC-fcdeai! |
